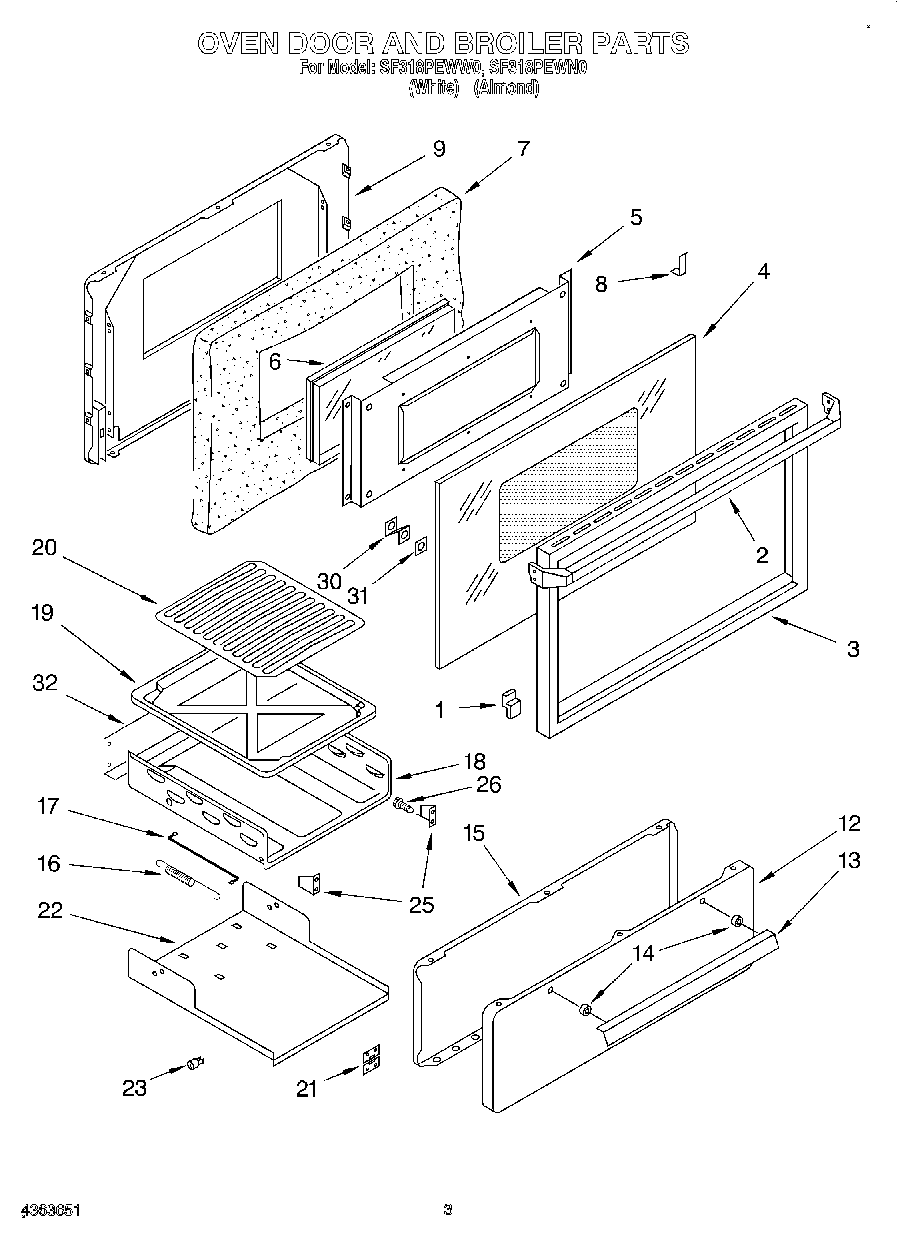

SF318PEWW0 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door
2	Screw, Door Handle
3	Frame, Door
4	Glass, Oven Door
5	Baffle, Door
6	Window
7	Insulation
8	Bumper (4)
9	Liner, Door
12	Panel, Broiler (Almond)
13	Handle
13	Panel, Broiler (Screw)
14	Spacer (4)
14	Panel, Broiler (White)
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Screws (3)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
22	Carriage Broiler
23	W10709871 Whirlpool Drawer Glide
25	Bracket
30	WP308685 Whirlpool Microwave Screw
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
32	Backer, Carriage
