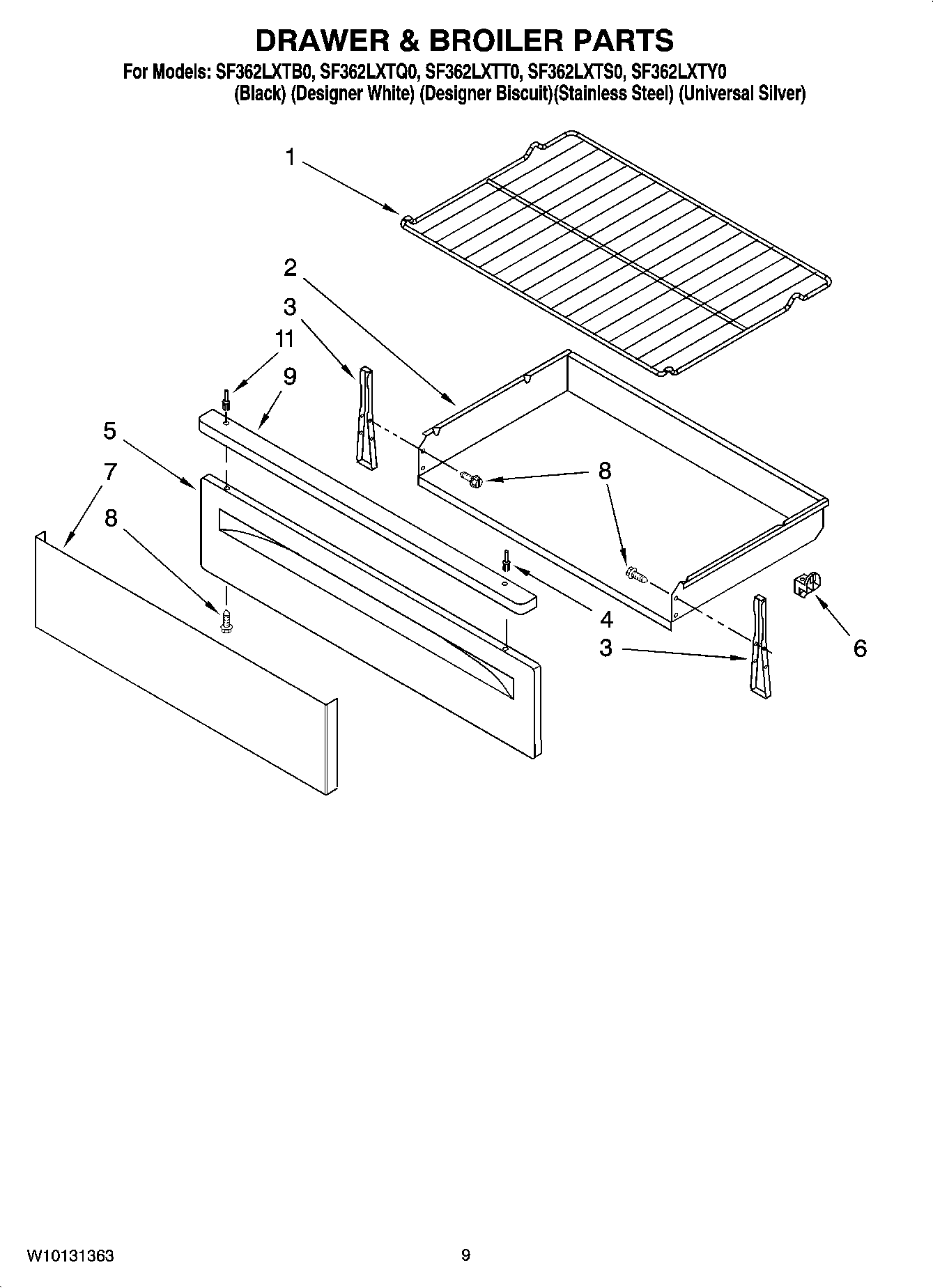

SF362LXTT0 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

SF362LXTT0 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

SF362LXTT0 06 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI130118A
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
3196896 Whirlpool Clip
W10045060 Whirlpool Grounding Wire
WPL ARI130117A
WPL ARI130116A
WPL ARI130115A
WPL ARI130114A
WPL ARI130113A
WPL 9762433
WPL ARI130119A
WPL 8524207
8523599 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
285006 Whirlpool Spray
W11447673 Whirlpool Range Tip Anchor
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3BRKT-MNTG
4WP3196814 Whirlpool Rivet
4WP3196813 Whirlpool Rivet
43196815 Whirlpool Oven Rivet
5Panel, Drawer Front (Biscuit)
5W11230486 Whirlpool Drawer Panel
5W11230490 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7Panel, Stnls & US
8WP3400832 Whirlpool Screw
9Handle (Black)
9Handle, Drawer
11WPW10031790 Whirlpool Screw
