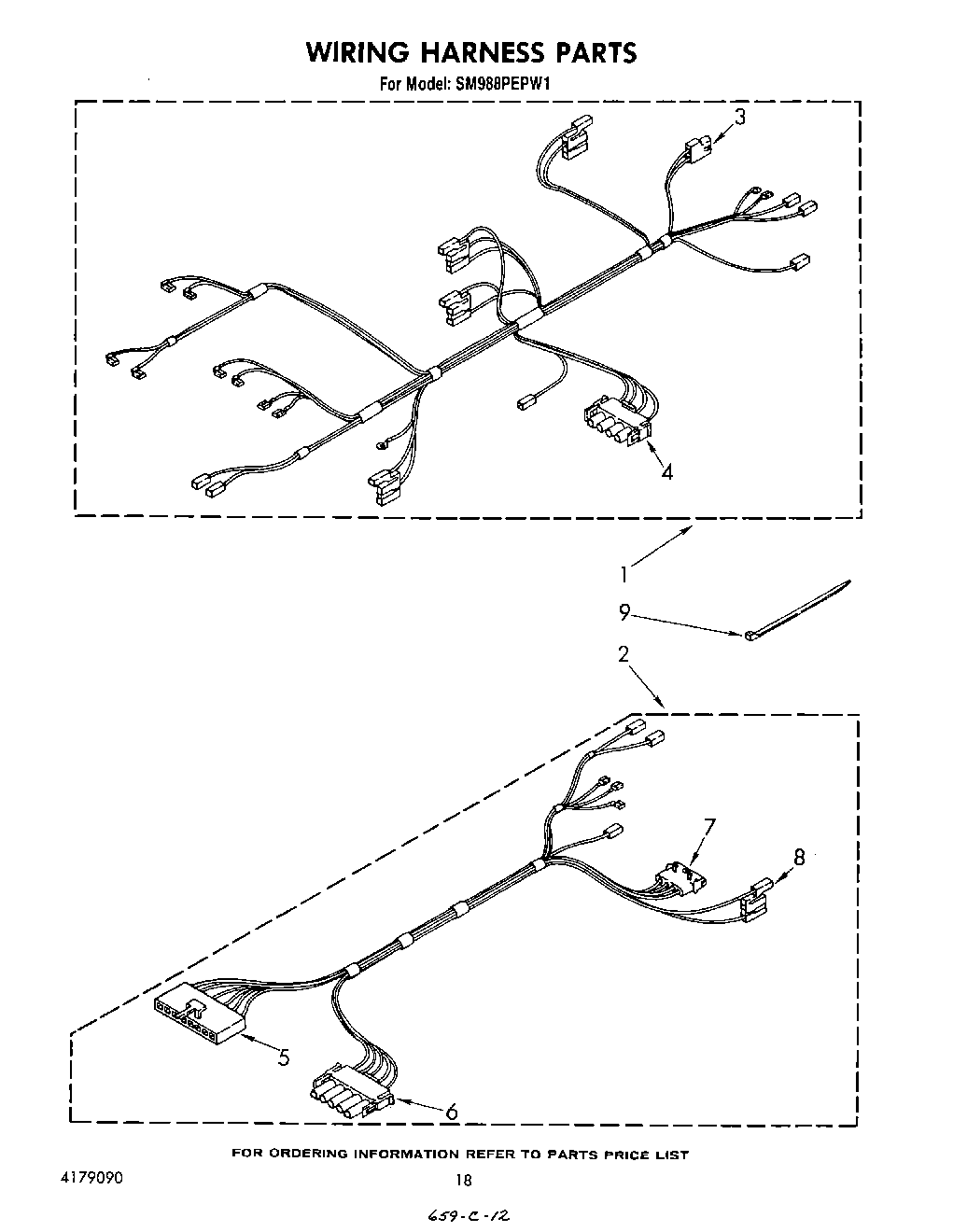

SM988PEPW1 12 – WIRING HARNESS

Written by

Products

Position	Product
1	Screw, 80 x 5/16
1	Harness, Wiring (Main)
2	Harness, Wiring (Control)
3	Receptacle, Latching (2-Way) (Uses Terminal 94614)
4	Disconnect Block (4 Terminal)
5	Connector Housing
6	WPL 311574
7	Disconnect Block, Female
8	Housing, Plug
9	WPW10339879 Whirlpool Wire Tie
