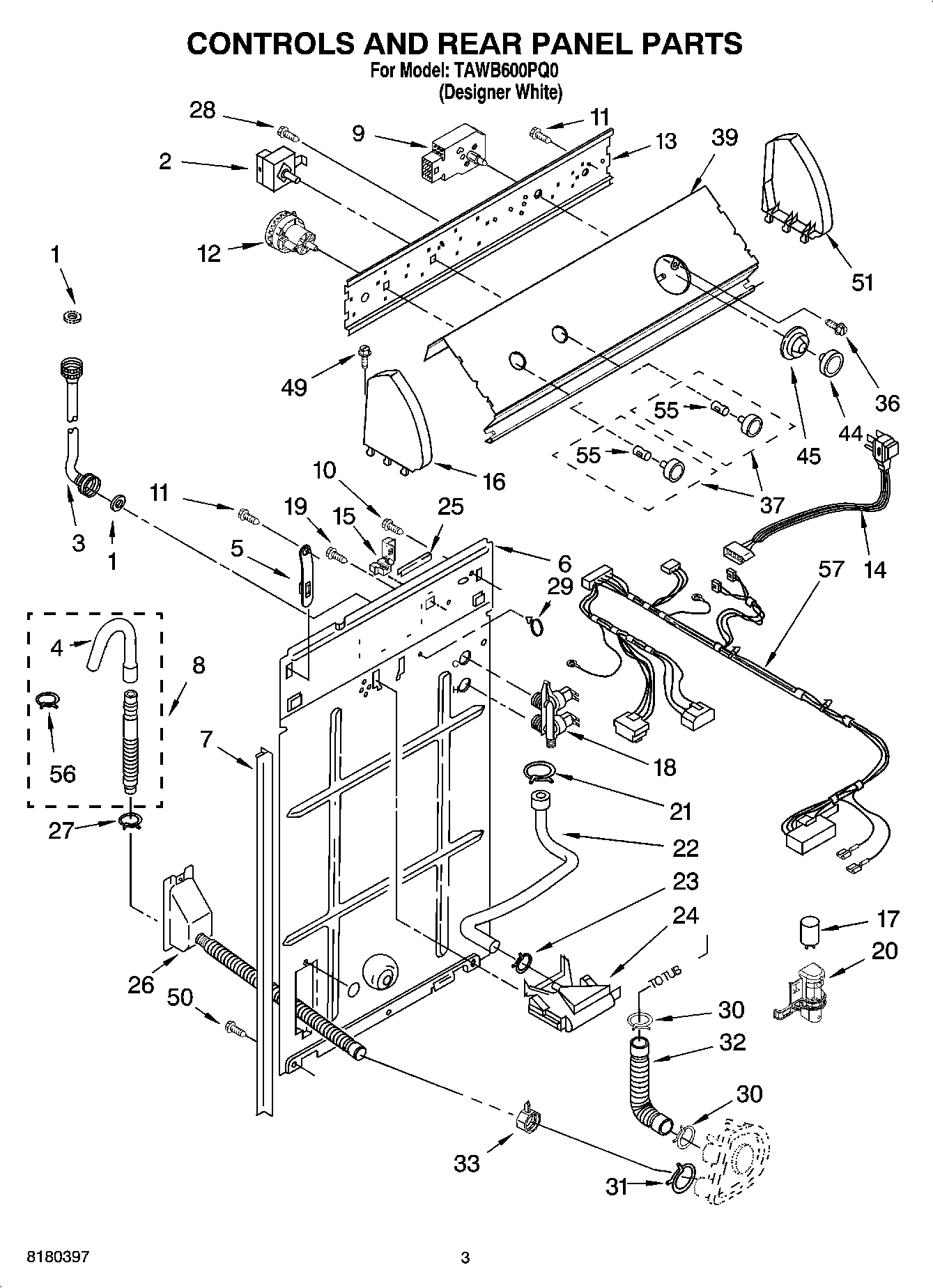

TAWB600PQ0 02 – CONTROL AND REAR PANEL PARTS

TAWB600PQ0 02 – CONTROL AND REAR PANEL PARTS

Written by

in

TAWB600PQ0 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WPW10168256 Whirlpool Temperature Switch
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
17CAPACITOR
18285805 Whirlpool Washer Water Inlet Valve
19WP9740848 Whirlpool Dishwasher Screw
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
283400073 Whirlpool Screw
298559320 Whirlpool Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clamp, Hose
36WP3400818 Whirlpool Screw
37WP8557460 Whirlpool Knob
39Panel, Console
44W10807860 Whirlpool White Control Knob
45Dial, Timer
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
55WP8536939 Whirlpool Spring Clip
56WP3357331 Whirlpool Clamp
57Harness, Wiring (For Detail See Page 9 & 10)
