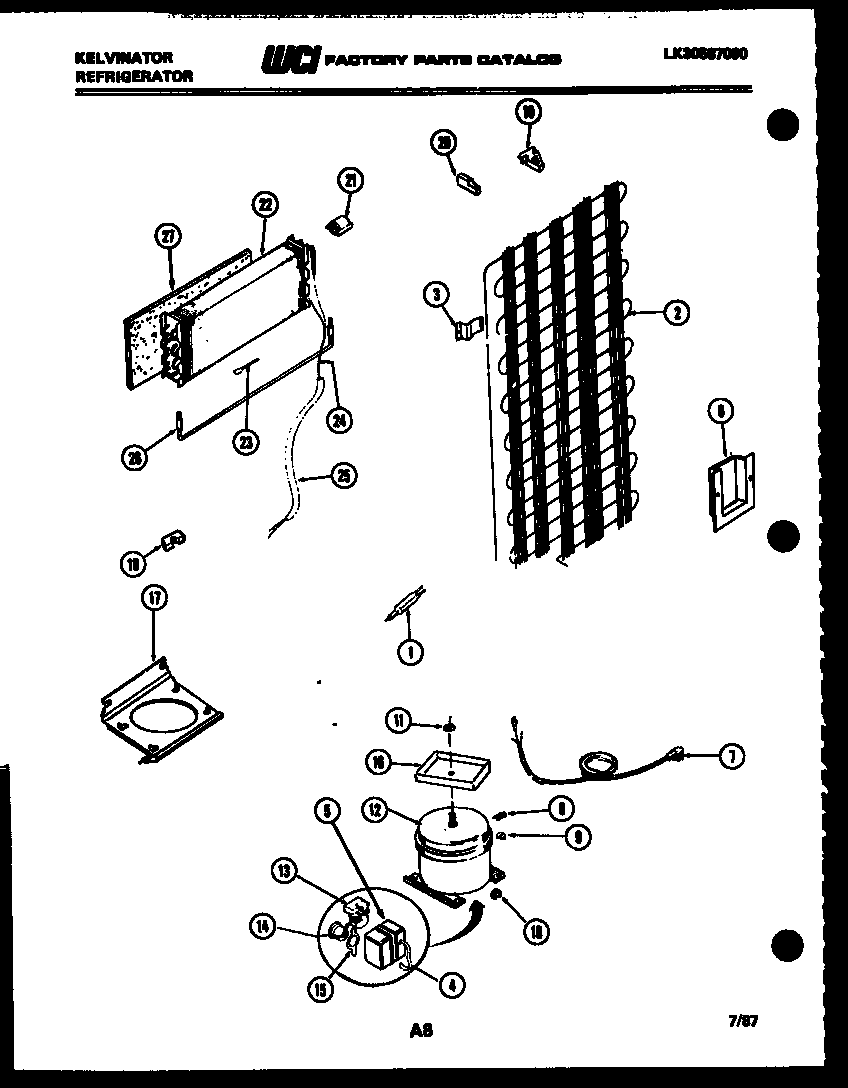

TMK160AN6D 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI G183584
7	CORD, SERVICE
8	CLIP, COMPRESSOR MOUNTING (4)
9	WASHER, COMPRESSOR MOUNTING (4)
10	218513300 Frigidaire Refrigerator Compressor Mount Grommet
11	NUT, LOCK
12	COMPRESSOR WITH ELECTRICALS
13	WCI G182225-03
14	WCI G176002
15	RETAINER, OVERLOAD
16	DEFROST PAN & NUT
17	PLATE
18	BLOCK, LEFT SIDE
19	BLOCK, EVAPORATOR, RH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	EVAPORATOR
23	WCI G164546
24	HEAT, EXCHANGE
25	WCI G125963-68
26	HEATER, DEFROST
27D	HOT TUBE REPAIR KIT
27C	HARNESS-COMPRESSOR
27B	WCI G167234
27A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	INSULATOR
27E	WCI G185229-09
30	PLUG, EVAPORATOR INSULATION BLOCK, R H
