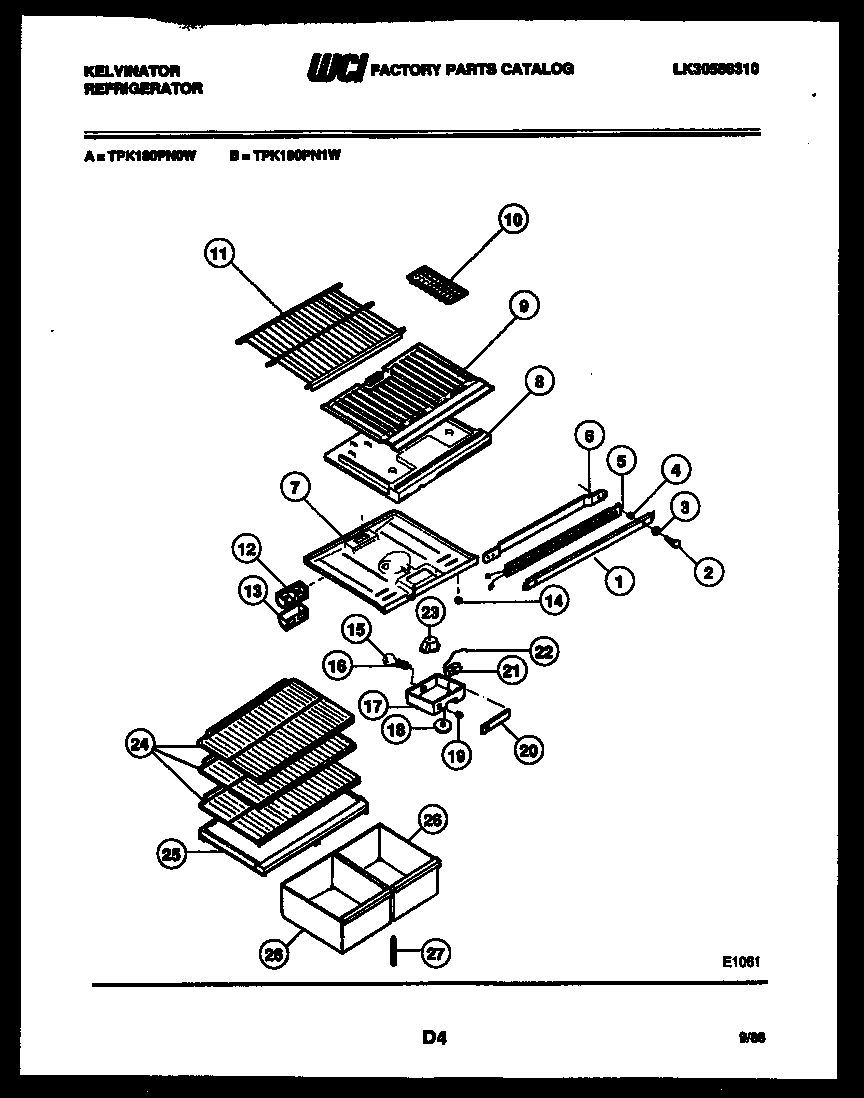

TPK180PN1W 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3200366
2SCREW, BRACKET MOUNTING (4)
3WASHER (2)
4SPACER (NON-ILLUSTRATED)
5WCI 3018916
6STRAP, MULLION MOUNTING
7TOP-REFRIGERATOR
7ASCREW (5)
8DIVIDER, CENTER
8AHARNESS, WIRING
9BOTTOM, FC
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI G182730-02
12DEFLECTOR AIR
13WCI G162178
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET LIGHT
17A5304455650 Frigidaire Refrigerator Screw
17WCI G176722-05
18KNOB
19SWITCH SLIDE
20LABEL-CONTROL BOX
21AWCI G107080
21COLD CONTROL
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-REFRIGERATOR (3)
25COVER-CRISPER
26PAN-STORAGE (2)
27SUPPORT, CRISPER COVER
