TRT15DRAW0 04 – SHELVES AND SUPPORTS

TRT15DRAW0 04 – SHELVES AND SUPPORTS

Written by

in

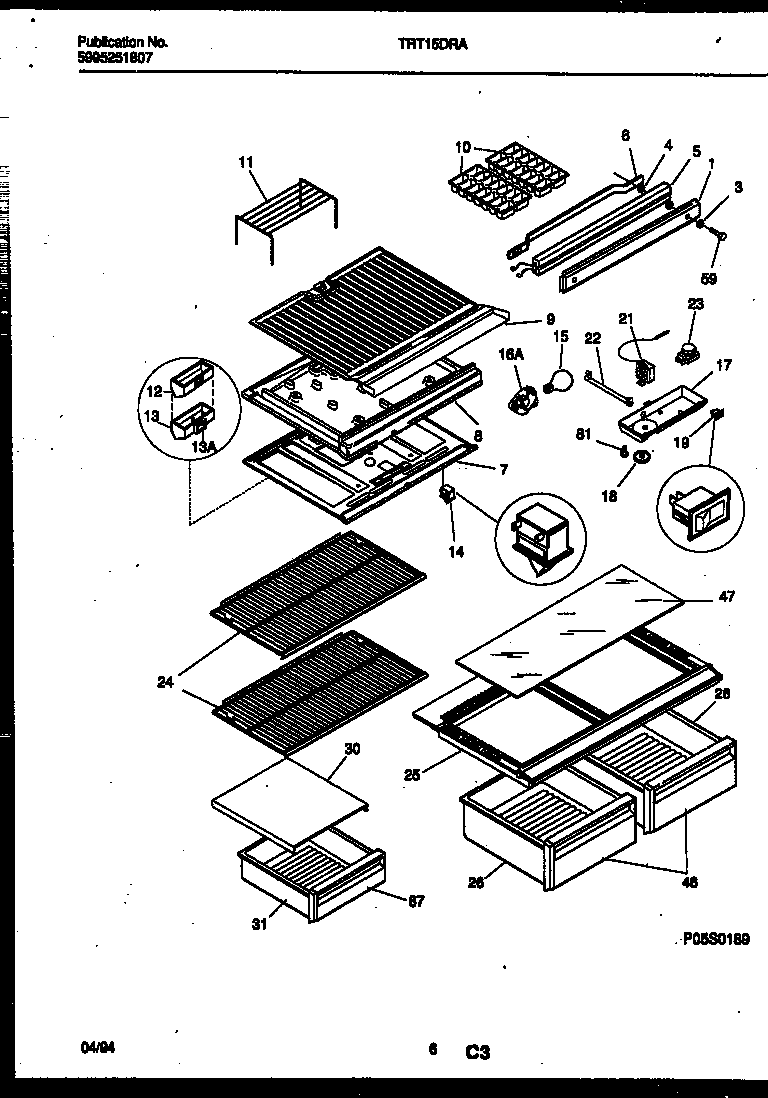

TRT15DRAW0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206121
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206120
6WCI 215170801
7WCI 3206185
7AWCI 5303001380
8WCI 3206186
8B3205266 Frigidaire Refrigerator Edge Protector
8AWCI 3018900
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 3206130
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25COVER-CRISPER PAN, WITH BEAM, LESS INSERT
26PAN-CRISPER
30WCI 5303285319
31WCI 3206209
46WCI 5303300049
47WCI 5303277005
59WCI 5308012258
67WCI 5303300048
815304455650 Frigidaire Refrigerator Screw
