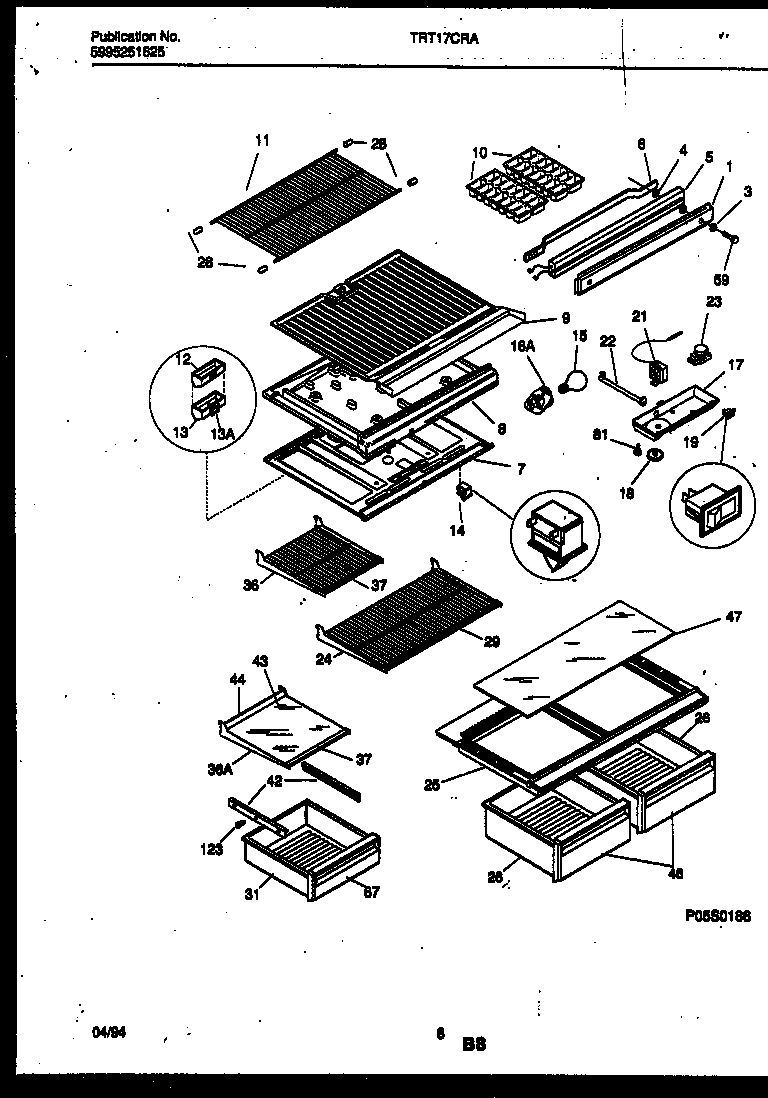

TRT17CRAD0 04 – SHELVES AND SUPPORTS

Products

Position	Product
*99047	CLIP-CANTILEVER SHLF
1	WCI 3206125
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	WCI 215882100
5	WCI 3206120
6	WCI 215170801
7	WCI 3206185
7A	WCI 5303001380
8	WCI 3206186
8B	3205266 Frigidaire Refrigerator Edge Protector
8A	WCI 3018900
9	WCI 3206187
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A	5303001449 Frigidaire Refrigerator Seal
12	DEFLECTRO, AIR, W/SEAL
13	WCI 5303001448
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 3206130
17A	NUT, ANCHOR (NI)
18	WCI 5303299979
19	SWITCH-ENERGY SAVER, ROCKER
21A	WCI 5303001260
21	WCI 5303018894
22	WCI 3018891
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	SHELF, CANTILEVER, FULL WIDTH, WIRE
25	WCI 3206183
26	PAN – CRISPER
28	END CAP-SHELF,PROTECTOR
29	WCI 5303300052
31	WCI 3206351
36A	FRAME-SHELF, CANTILEVER, HALF WIDTH
36	WCI 5303280813
37A	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
37	WCI 5303300051
42	WCI 5303282331
42	WCI 5303282330
43	WCI 215723508
44A	LOCK-SHELF TRIM, REAR
44	TRIM-SHELF, 11.31“, REAR, SNAP-ON
46	WCI 5303300055
47	WCI 5303271945
59	WCI 5308012258
67	WCI 5303300054
81	5304455650 Frigidaire Refrigerator Screw
123	WCI 08014528
