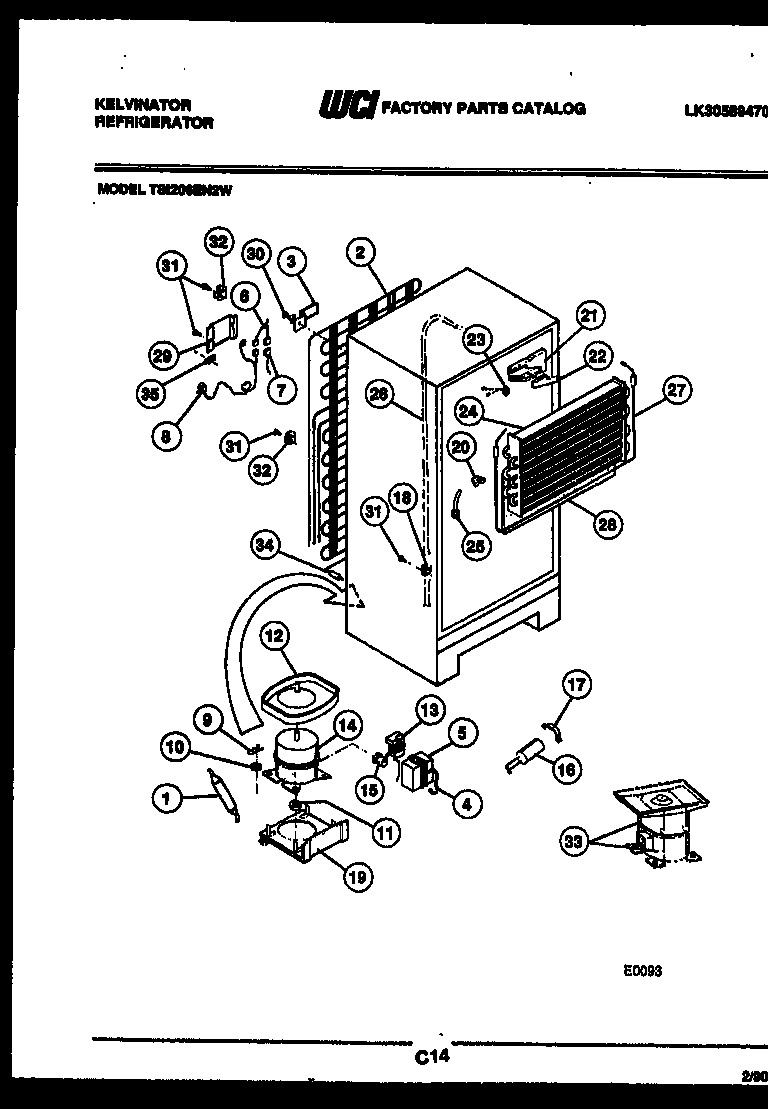

TSI206EN2F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*959865303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*95986HOT TUBE REPAIR KIT
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3AWASHER
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6HARNESS-DIVIDER (NON-ILLUSTRATED)
7HARNESS-COMPRESSOR
8CORD-ELECTRIC POWER
9CLIP, COMPRESSOR MOUNTING (4)
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12ANUT, LOCK
13RELAY-TL
14WCI 5300189462
15WCI 5308017532
16CAPACITOR
17STRAP – CAPACITOR MOUNTING
185308000133 Frigidaire Refrigerator Clamp
19PLATE
20BLOCK, LEFT SIDE
21INSULATION BLOCK, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5300162506
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 08000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP
29WCI G183584
31A5308000039 Frigidaire Refrigerator Screw
315304455651 Frigidaire Refrigerator Screw
32240396801 Frigidaire Refrigerator Tube Clamp
33PAN RETAINER KIT-SERVICE
345303017691 Frigidaire Refrigerator Spacer-Tube
355303001199 Frigidaire Refrigerator Wiring Harness Clamp
