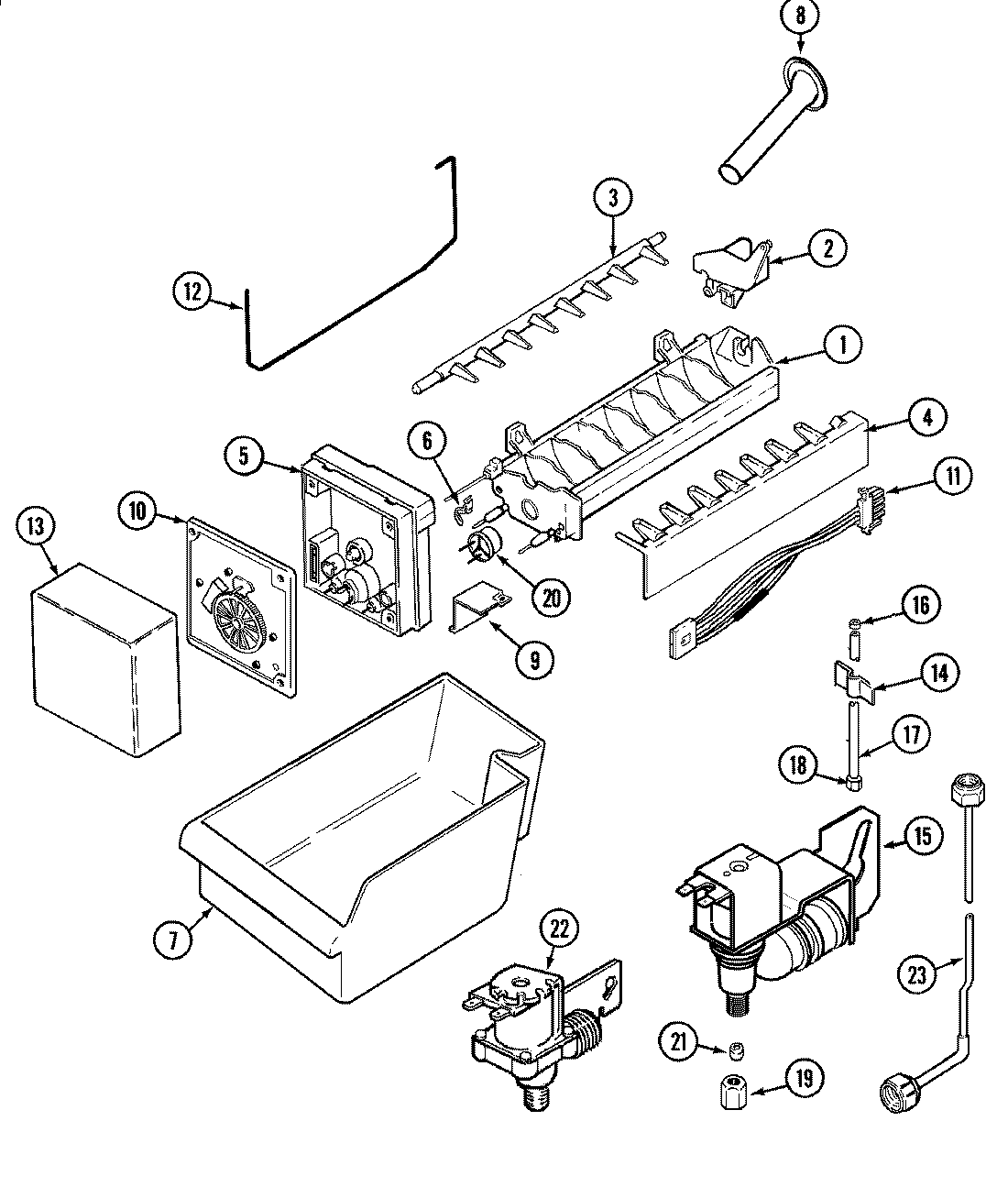

UKI1000AKX 01 – ICE MAKER KIT

UKI1000AKX 01 – ICE MAKER KIT

Written by

in

UKI1000AKX 01 – ICE MAKER KIT

Products

PositionProduct
1WP99003172 Whirlpool Silicone L
1MAY Y06100047
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5SCREW
5WP2195914 Whirlpool Refrigerator Ice Maker Housing
6WP2315522 Whirlpool Refrigerator Clip
7MAY 61001886
8MAY 61001888
9BRACKET, MODULE & HEATER
9MAY 95108-1
10MAY 400021-1
10MAY Y06100049
11MAY 61003573
12MAY 68112-1
13MAY 61001239
14MAY 61001889
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 61003021
18WP627018 Whirlpool Refrigerator Nut
20WP627985 Whirlpool Icemaker Cycling Thermostat
20MAY 95093-1
22MAY 61002819
22MAY 61003020
23MAY 61001858
