WCG97US0DS00 02 – COOKTOP, BURNER AND GRATE PARTS

WCG97US0DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

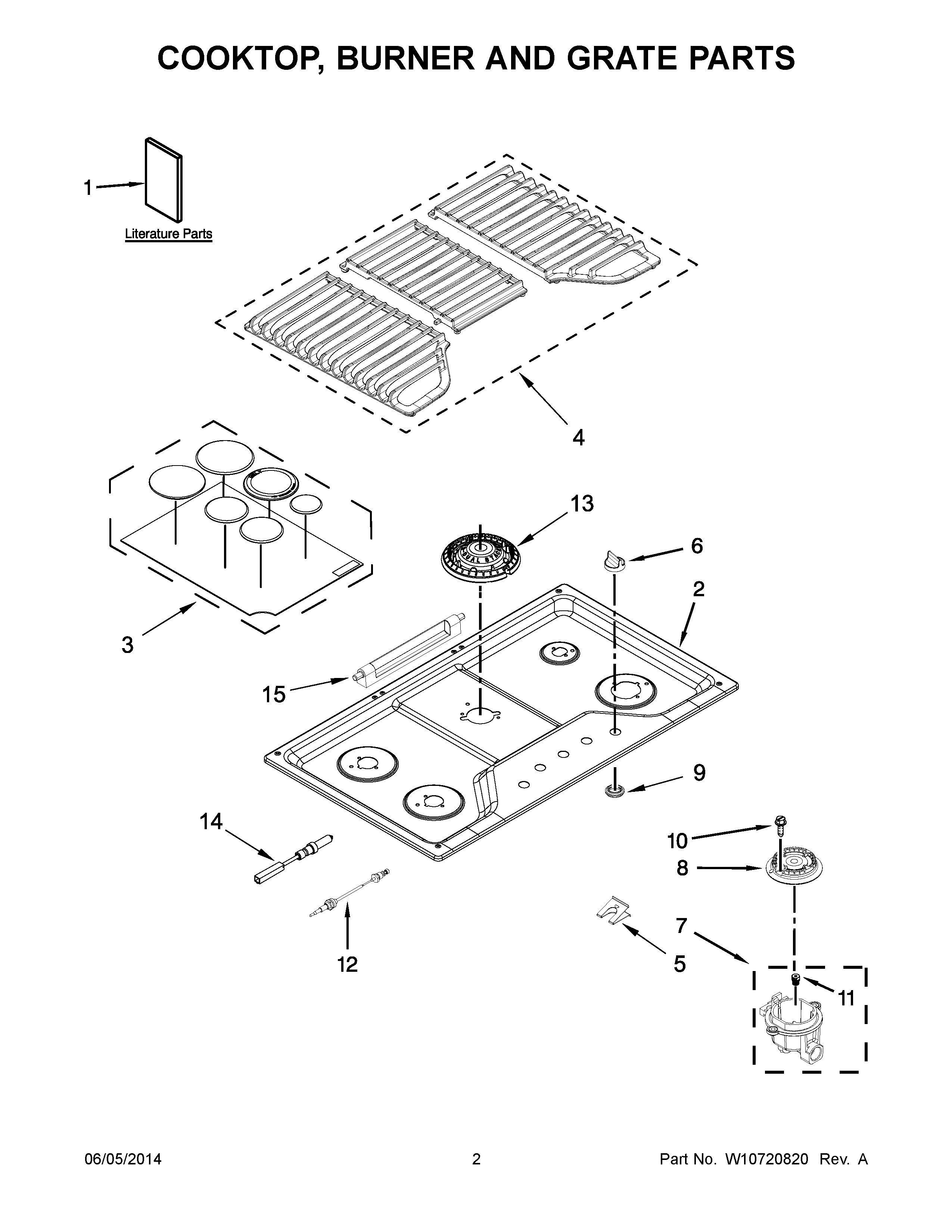

WCG97US0DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1USE & CARE GUIDE
1UNDERCOUNTER INSTALL INSTRUCTIONS
1INSTALLATION INSTRUCTIONS
1Safer Cooking Tips (French)
2COOKTOP (STAINLESS)
3W10833886 Whirlpool Burner Cap Assembly
4W11170857 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6WPW10594481 Whirlpool Range Knob
7W10597166 Whirlpool Orifice Holder
7W10611441 Whirlpool Orifice Holder
7W10613381 Whirlpool Orifice Holder
7W10594399 Whirlpool Orifice Holder
8WP8286813 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10WP8287059 Whirlpool Screw
11W10791082 Whirlpool Spud Orifice
11W10791073 Whirlpool Gas Orifice Spud
11W10791076 Whirlpool Spud Orifice
11W10652710 Whirlpool Orifice Spud
11W10652706 Whirlpool Spud Orifice
12W11507531 Whirlpool Surface Igniter Assembly
12W11507532 Whirlpool Surface Igniter
13W10811599 Whirlpool Burner Head
14W10852959 Whirlpool Surface Igniter
15W10826075 Whirlpool Cooktop Hinge
