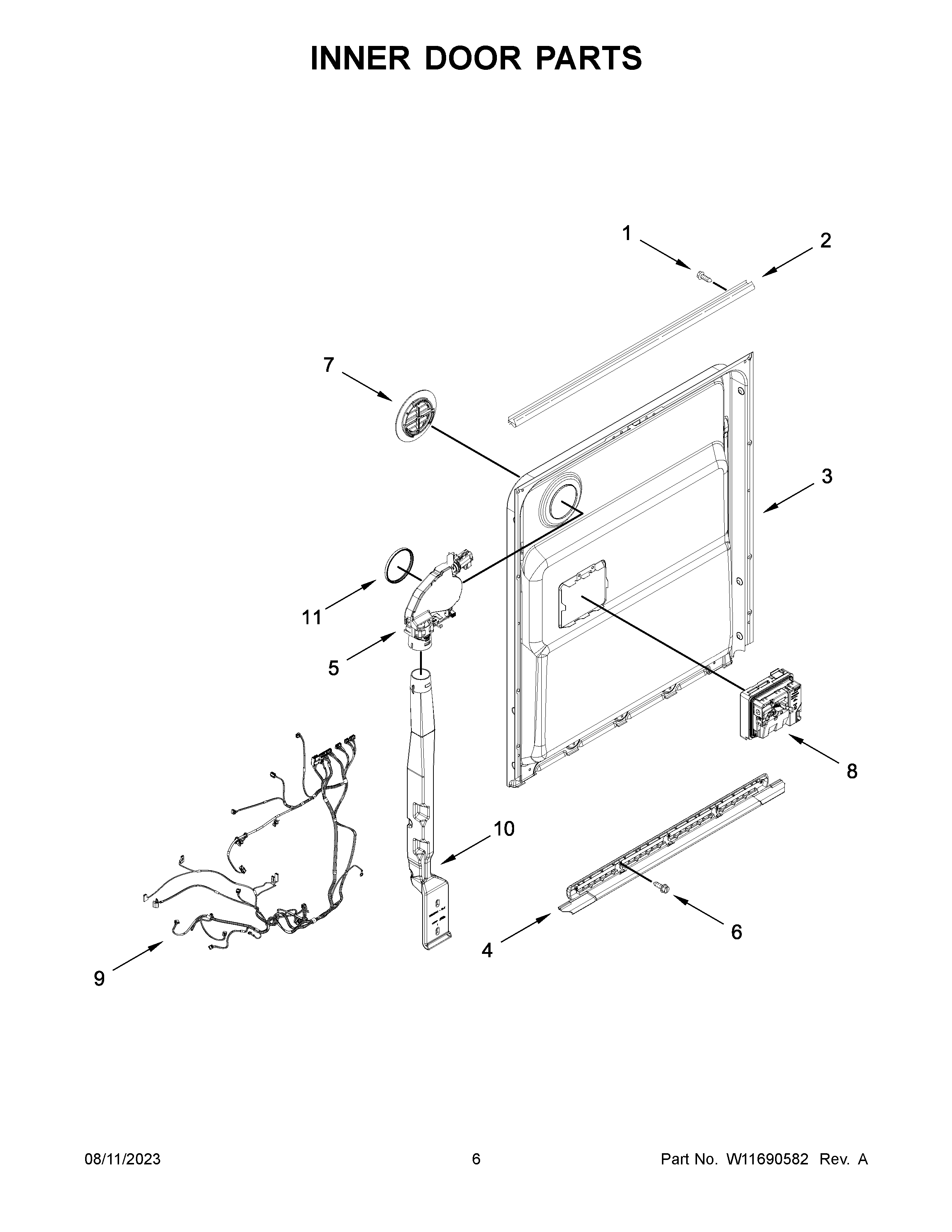

WDP730HAMZ1 04 – INNER DOOR PARTS

WDP730HAMZ1 04 – INNER DOOR PARTS

Written by

in

WDP730HAMZ1 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11213719 Whirlpool Dishwasher Seal
3W11637956 Whirlpool Inner Door Assembly
4W11252794 Whirlpool Seal Assembly
5W11682810 Whirlpool Vent Assembly
6W11631670 Whirlpool Screw
7W11613487 Whirlpool Deflector
8W10861000 Whirlpool Dishwasher Detergent Dispenser
9W11697178 Whirlpool Wire Harness
10DUCT, VENT
11W11545539 Whirlpool Gasket Seal
