WDT770PAYB0 07 – PUMP, WASHARM AND MOTOR PARTS

WDT770PAYB0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

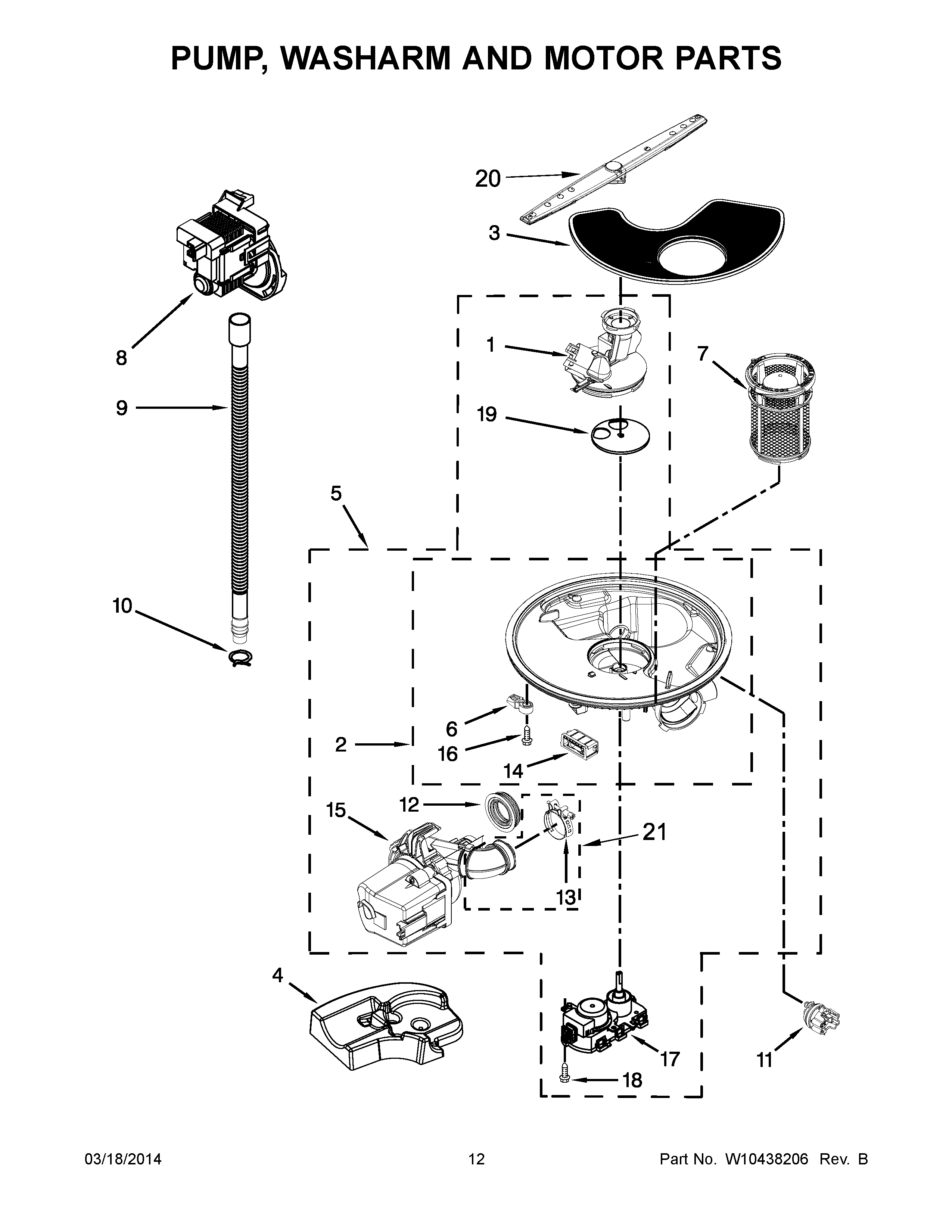

WDT770PAYB0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W10463895 Whirlpool Dishwasher Cover
2WPW10195643 Whirlpool Dishwasher Sump Assembly
3WPW10354786 Whirlpool Dishwasher Screen
4W10350335 Whirlpool Dishwasher Damper
5WPW10482482 Whirlpool Dishwasher Pump and Motor
6WPW10372113 Whirlpool Dishwasher Sump Tab
7W10872845 Whirlpool Dishwasher Filter Cup Trap
8WPW10348269 Whirlpool Washer Drain Pump
98269144A Whirlpool Dishwasher Drain Hose
10WP285655 Whirlpool Hose Clamp
11WPW10705575 Whirlpool Dishwasher Sensor
12WPW10538166 Whirlpool Grommet Pump
13W10488094 Whirlpool Dishwasher Clamp
14W11243394 Whirlpool Dishwasher Support
15W11032770 Whirlpool Dishwasher Circulation Pump & Motor
16WPW10348407 Whirlpool Dishwasher Screw
17W10537869 Whirlpool Dishwasher Motor
18WP9741232 Whirlpool Dishwasher Screw
19DISC, DIVERTER
20ARM-SPRAY
21W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
