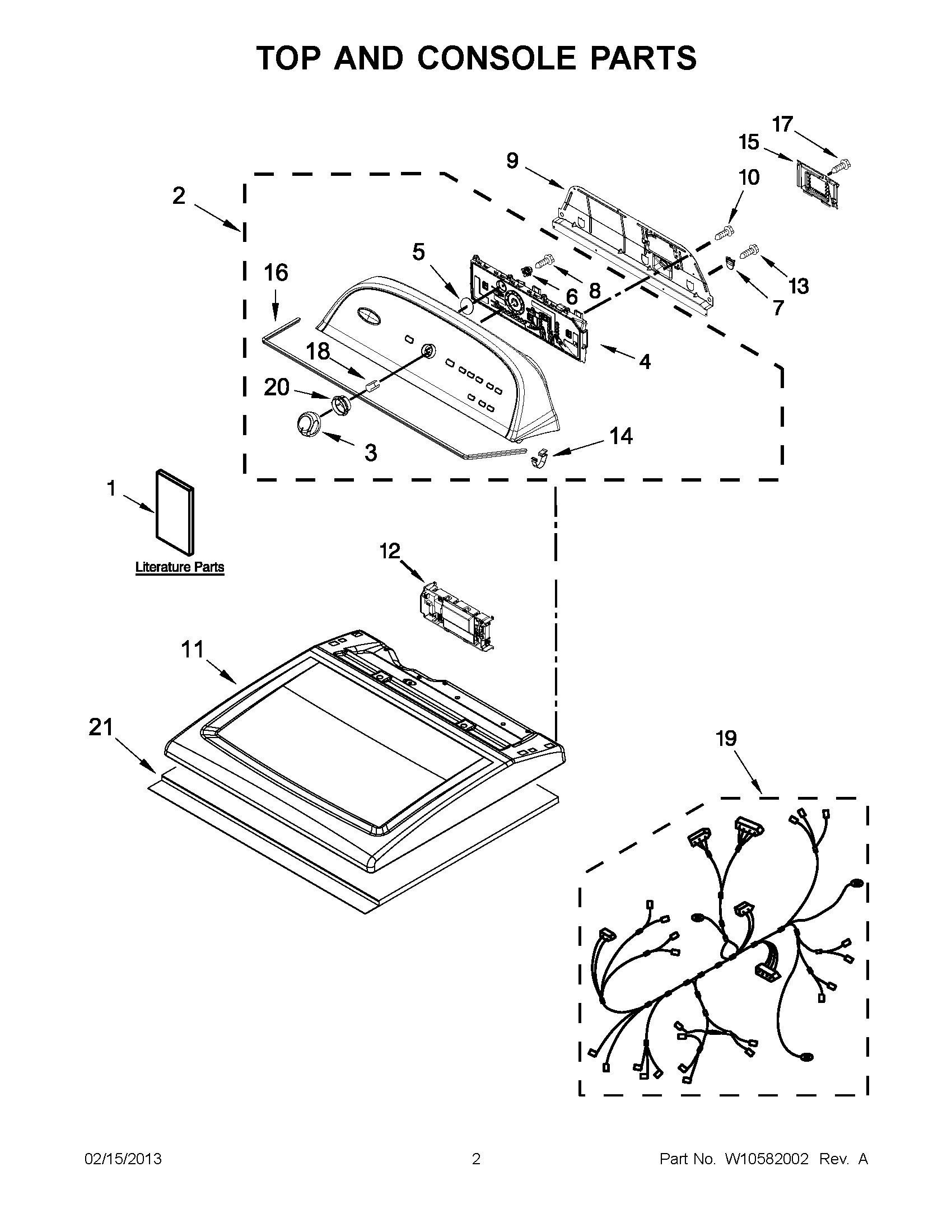

WED5500XW1 01 – TOP AND CONSOLE PARTS

WED5500XW1 01 – TOP AND CONSOLE PARTS

Written by

in

WED5500XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1GUIDE, USE & CARE
1WIRING DIAGRAM
2WPW10269607 Whirlpool Console Assembly
3WPW10251392 Whirlpool Knob
4WPW10269623 Whirlpool Electronic Control Board + Core
5W10323092 Whirlpool Seal
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9PANEL, REAR CONSOLE
11TOP (WHITE)
12WPW10317636-includeCORE Whirlpool WPW10317636 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10280079 Whirlpool Seal
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19W10253981 Whirlpool Wire Harness
20W10325119 Whirlpool Spacer
21W10123956 Whirlpool Sound Absorber
