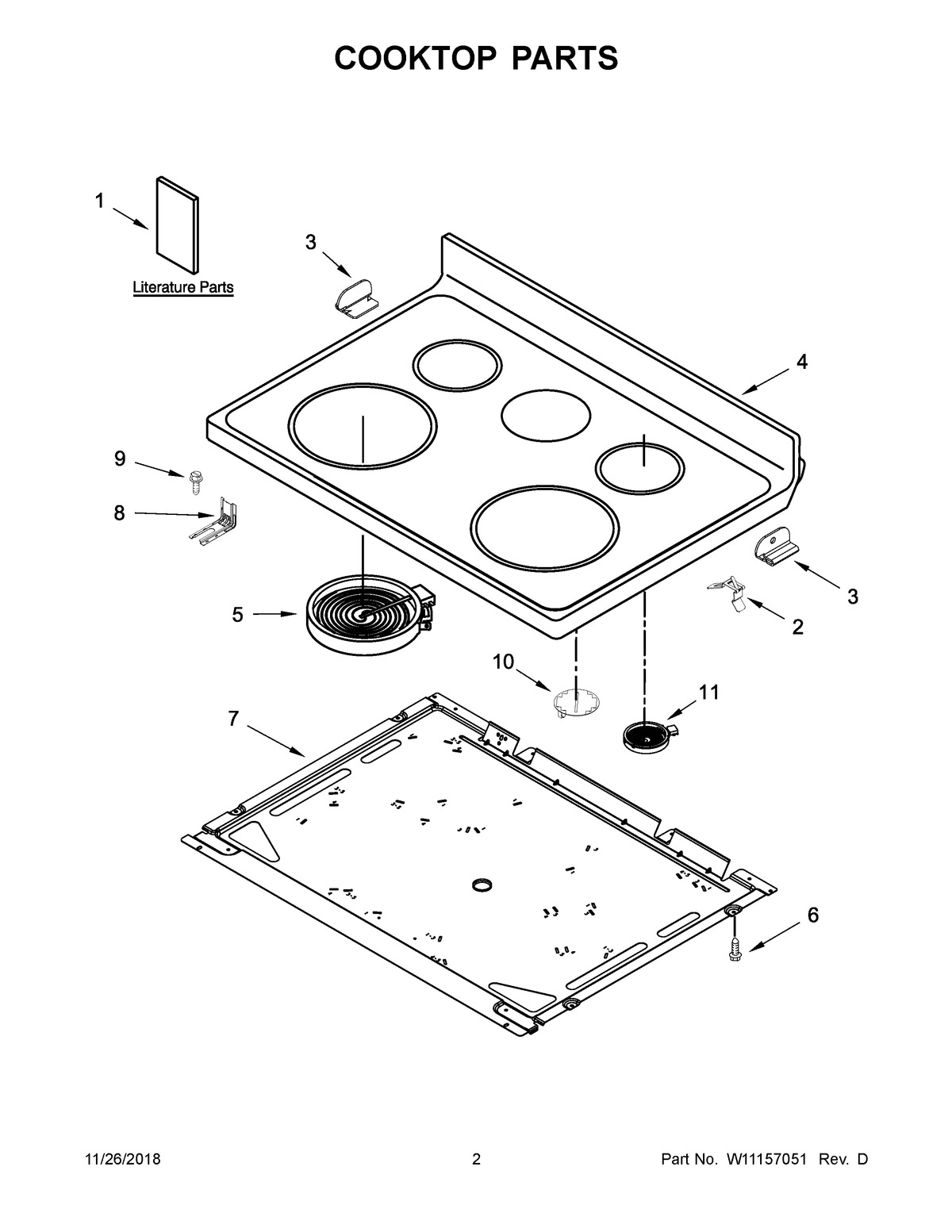

WFE525S0HV0 02 – COOKTOP PARTS

WFE525S0HV0 02 – COOKTOP PARTS

Written by

in

WFE525S0HV0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIHARNESS, COOKTOP (RIGHT)
NIHARNESS, WARM ZONE
NIHARNESS, COOKTOP (LEFT)
1CSHEET, TECH
1BWIRING DIAGRAM
1AINSTRUCTIONS, INSTALLATION
1USE AND CARE GUIDE
2SPRING, ELEMENT
3BRACKET, COOKTOP (LEFT)
3ABRACKET, COOKTOP (RIGHT)
4COOKTOP (BLACK)
5ELEMENT (3000/1400W) (LEFT FRONT)
6SCREW
7PAN, RADIANT ELEMENT
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
10ELEMENT, WARM ZONE (CENTER)
11ELEMENT (1200W) (LEFT REAR, RIGHT REAR)
