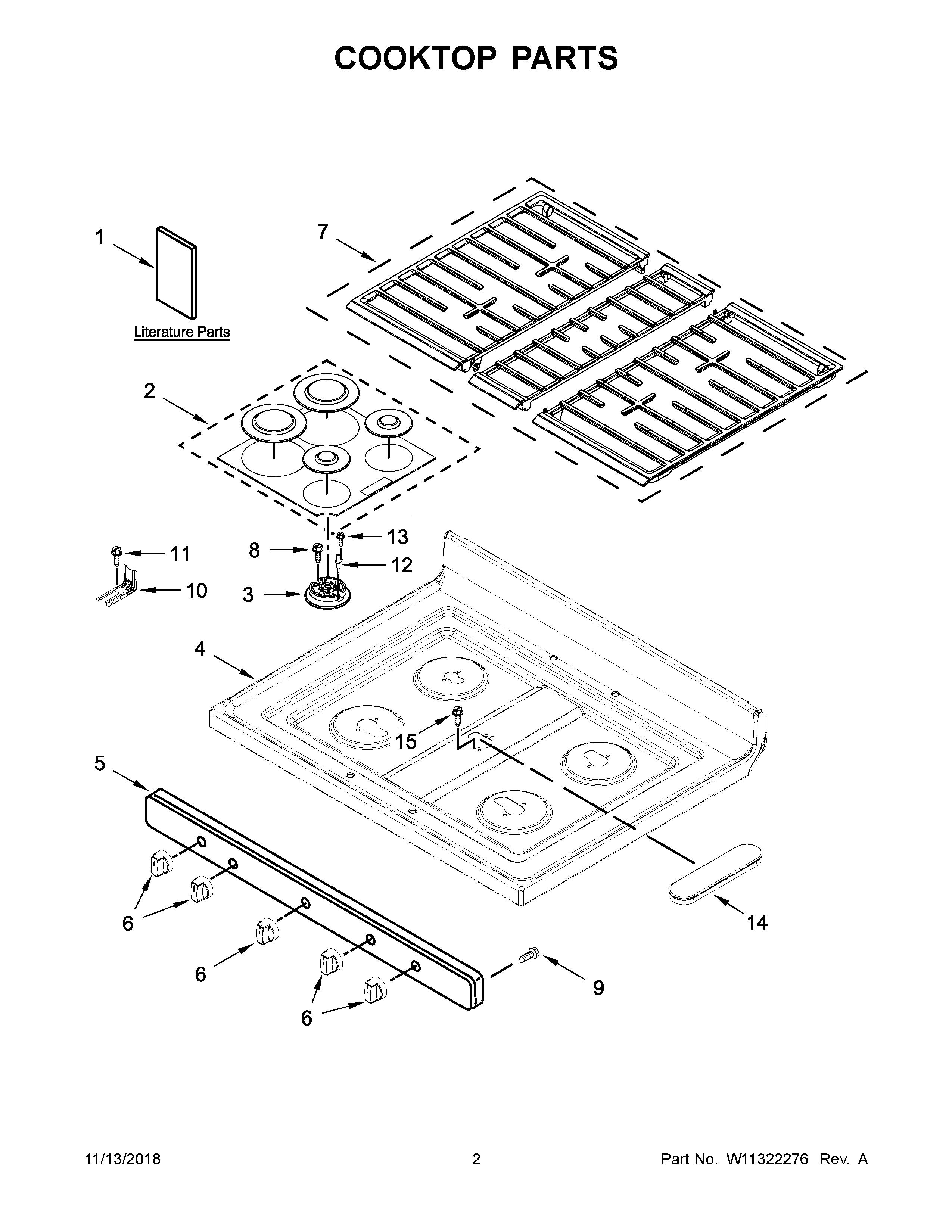

WFG525S0HW1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11244557 Whirlpool Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10842520 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11161843 Whirlpool Wire Harness
NI	W10809927 Whirlpool Wire Harness
1C	DIAGRAM, WIRING
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH (ENGLISH)
2	W10881749 Whirlpool Burner Cap
3B	WPW10515453 Whirlpool Burner Head
3	WPW10515455 Whirlpool Burner Head
3A	WPW10515454 Whirlpool Burner Head
4	W11032119 Whirlpool Cooktop
4A	W11040043 Whirlpool Cooktop
4B	COOKTOP (BISCUIT)
5B	W11165123 Whirlpool Molded Panel
5	W11159628 Whirlpool Manifold Panel
5A	W11089577 Whirlpool Manifold Panel
6B	W11023143 Whirlpool Knob
6A	W11023142 Whirlpool Knob
6	W11159631 Whirlpool Knob Assembly
7	W11252165 Whirlpool Burner Grate
8	WP3368921 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12A	WPW10515459 Whirlpool Surface Igniter
13	WP8273062 Whirlpool Screw
14	W11162114 Whirlpool Top Burner Assembly
15	W11241230 Whirlpool Screw
