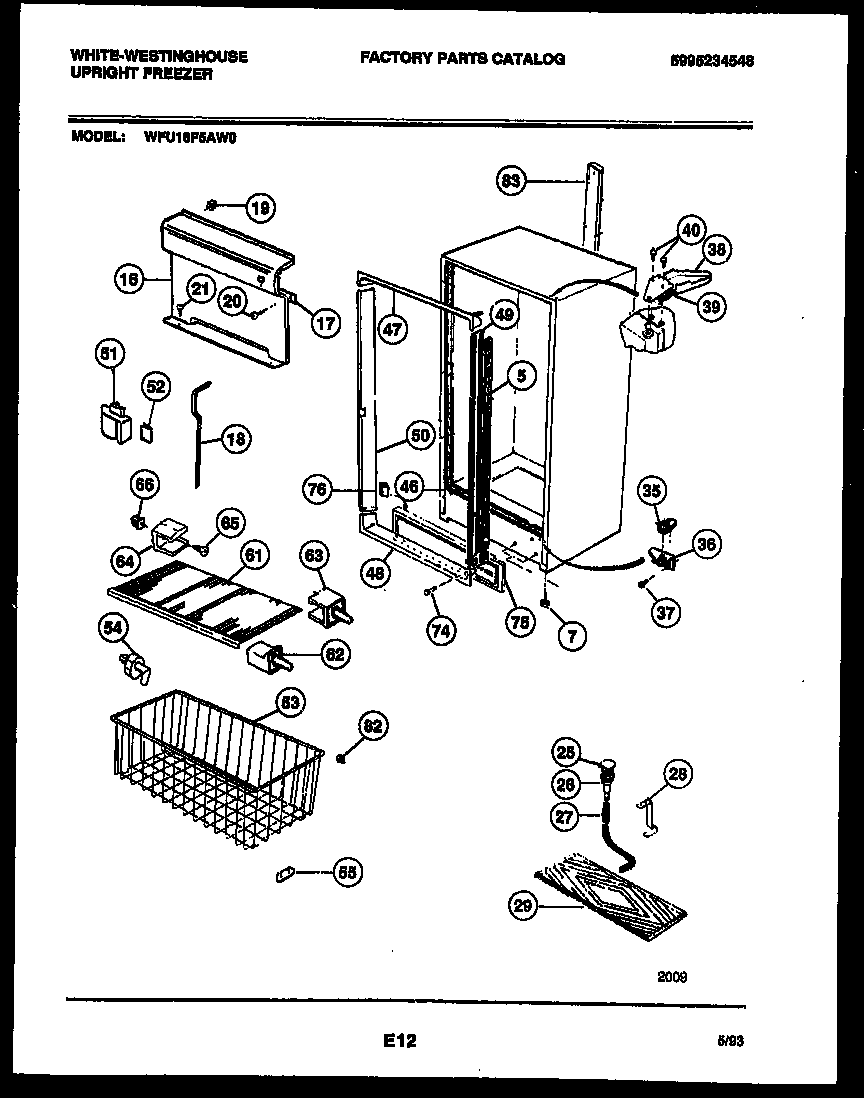

WFU16F5AW0 03 – CABINET PARTS

WFU16F5AW0 03 – CABINET PARTS

Written by

in

WFU16F5AW0 03 – CABINET PARTS

Products

PositionProduct
5INSULATION (CUT TO SIZE)
7WCI 216218100
16WCI 216084100
17WCI 06599547
18WCI 06599551
19WCI 09948978
20216858001 Frigidaire Refrigerator Screw
21216036601 Frigidaire Refrigerator Screw
25216503100 Frigidaire Refrigerator Screen-Drain
265304511843 Frigidaire Refrigerator Sleeve
275304512272 Frigidaire Hose Drain
28WCI 06594637
29WCI 5308016387
35RAMP, DOOR
36WCI 5303210383
37154518001 Frigidaire Refrigerator Screw
38COVER, HINGE
39WCI 5303925086
40WCI 5303212937
46WCI 06594680
47WCI 216085900
48WCI 216085800
49WCI 216108801
50WCI 216108901
51WCI 216013600
52CLIP, U, LOCK
535304497658 Frigidaire Refrigerator Basket
54WCI 09948791
5508009560 Frigidaire 0 Basket Glide
55BWCI 09950862
55AWCI 3201008
61AWCI 216077100
61SHELF-LOWER (1)
62WCI 5306594706
62AWCI 5306594707
63WCI 06594584
64WCI 5306594585
65Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
66WCI 06594537
74FASTENER BASE PANEL
75PANEL
76WCI 5300118003
825305878546 Frigidaire Refrigerator Bumper-Basket
83WCI 216009000
