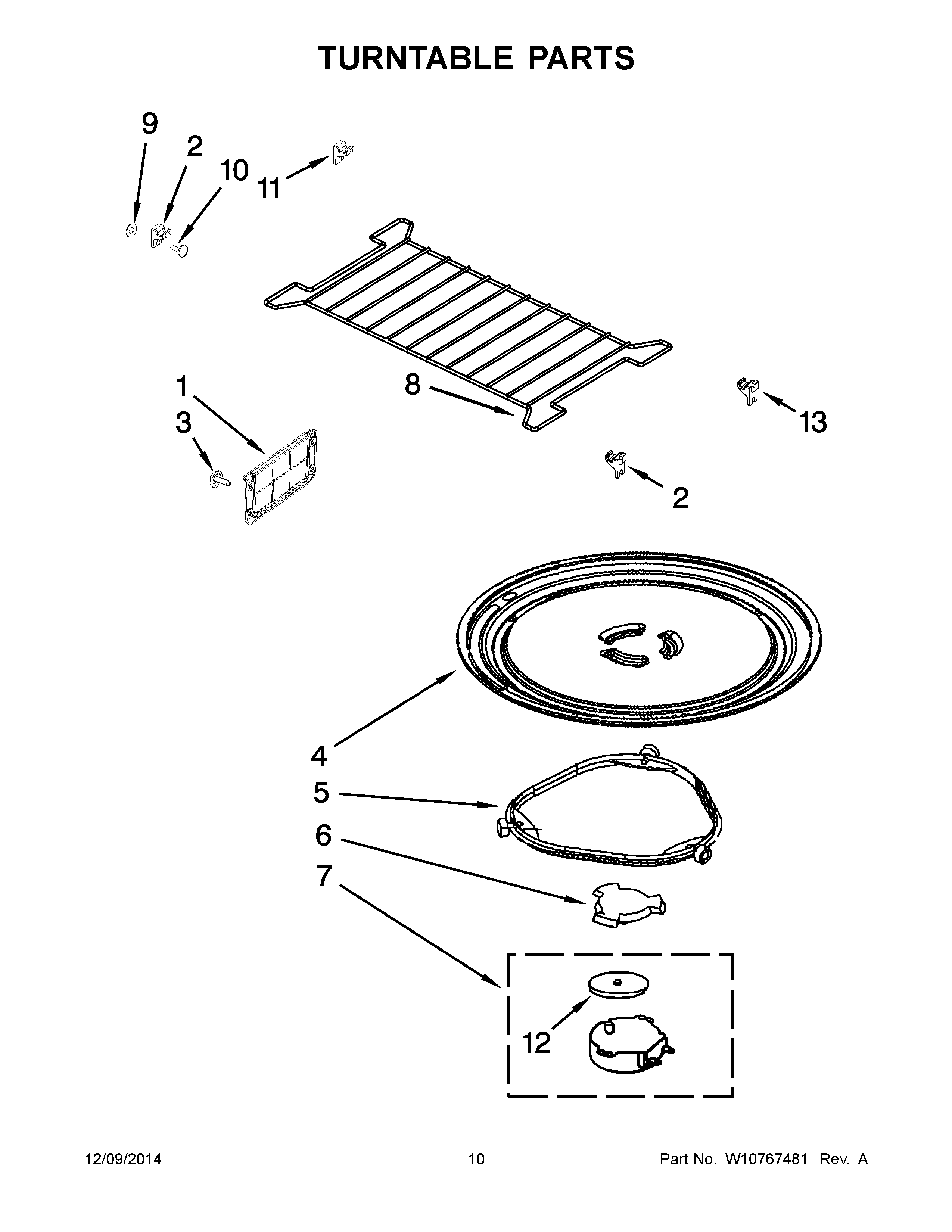

WMH32519CW1 06 – TURNTABLE PARTS

WMH32519CW1 06 – TURNTABLE PARTS

Written by

in

WMH32519CW1 06 – TURNTABLE PARTS

Products

PositionProduct
1W10313272 Whirlpool Microwave Inlet Cover
2W10840759 Whirlpool Microwave Support
3W11319886 Whirlpool Microwave Stir Rivet
4W11367904 Whirlpool Microwave Cook Tray
5W11252182 Whirlpool Glass Tray Support
6W10337248 Whirlpool Microwave Motor Coupler Support
7WPW10466420 Whirlpool Turntable Motor
8W10803366 Whirlpool Microwave Rack
9W10107790 Whirlpool Microwave Washer
10SCREW
11W10840794 Whirlpool Clip
128184109 Whirlpool Microwave Spacer
13W10840795 Whirlpool Microwave Support
