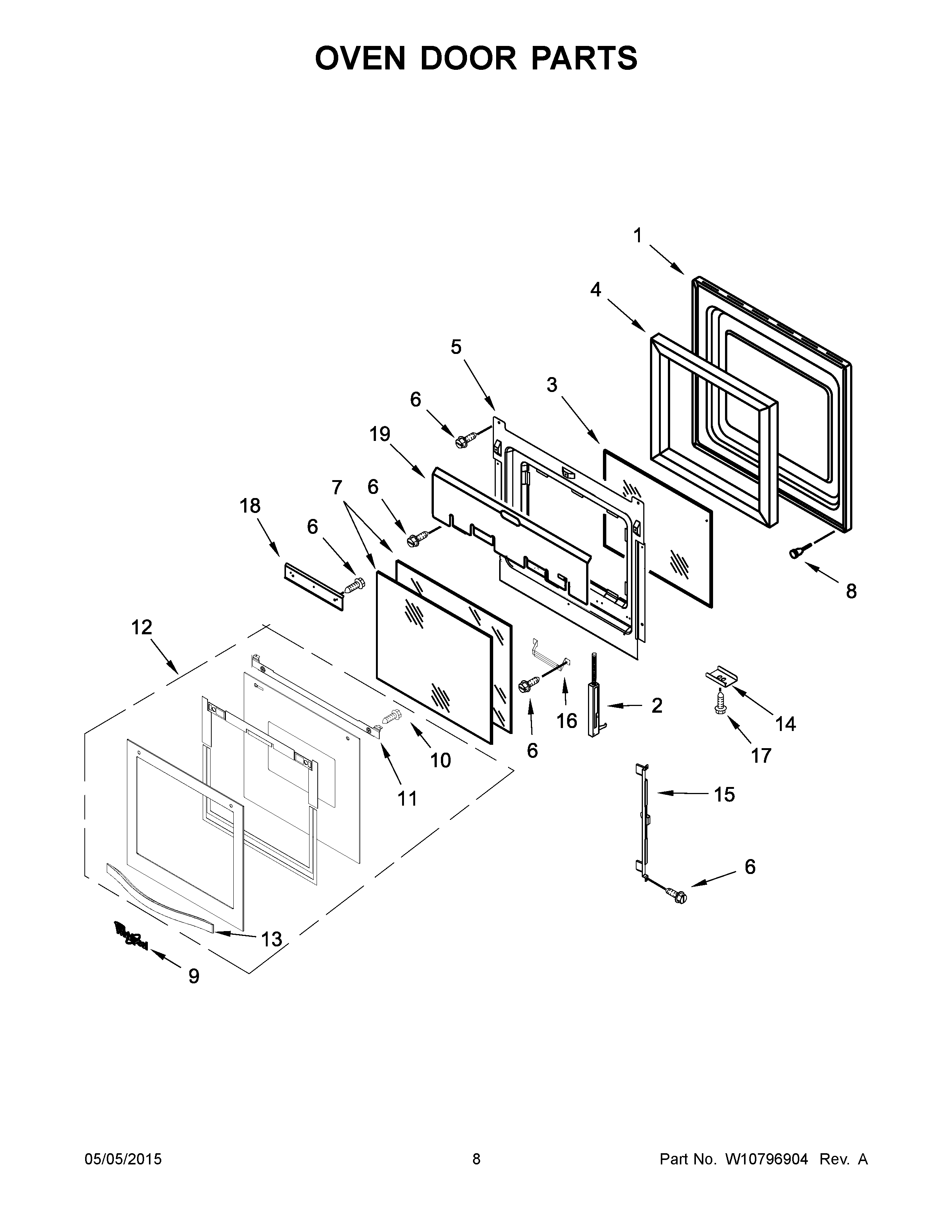

WOD51ES4ES00 05 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2A	9760569 Whirlpool Door Hinge
2C	WP9760571 Whirlpool Door Hinge
2B	WP9760572 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
6	SCREW
7	WP9759223 Whirlpool Door Glass
8	4448520 Whirlpool Oven Bumper
9	W11178521 Whirlpool Dishwasher Nameplate
10	WP488130 Whirlpool Air Conditioner Nut
11	BRACKET, HANDLE
12	W10804159 Whirlpool Door Glass Assembly
12A	W10804163 Whirlpool Door Glass
12B	W10804164 Whirlpool Door Glass
13	W11544132 Whirlpool Door Handle
13A	ASSEMBLY, DOOR HANDLE (WHITE)
13B	W10684318 Whirlpool Door Handle
14	W10789031 Whirlpool Clip
14A	W10789030 Whirlpool Clip
14B	W10789032 Whirlpool Clip
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	4457112 Whirlpool Oven Heat Shield
19	4457101 Whirlpool Oven Shield
