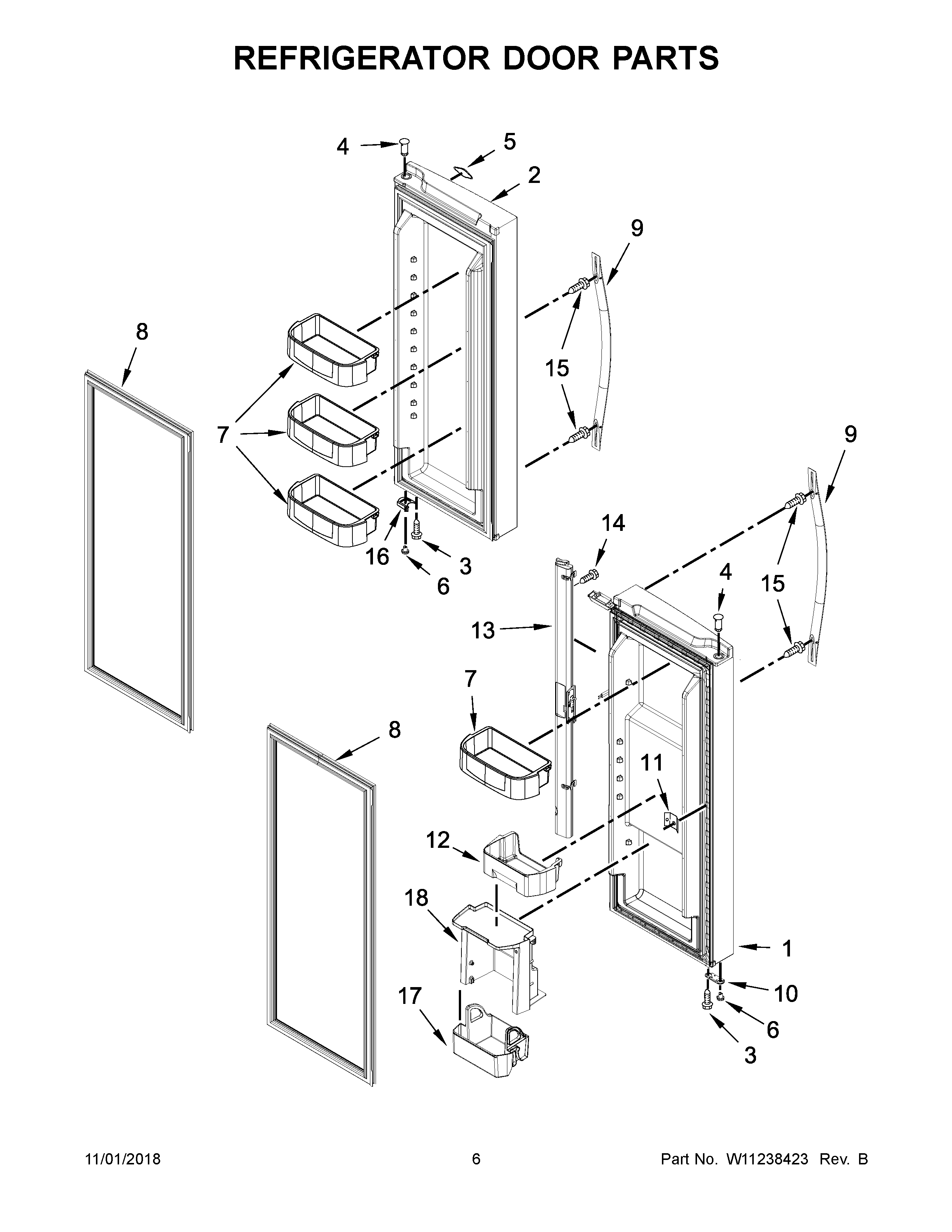

WRF560SMHV00 04 – REFRIGERATOR DOOR PARTS

WRF560SMHV00 04 – REFRIGERATOR DOOR PARTS

Written by

in

WRF560SMHV00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CDOOR, LEFT (INCLUDES #8) (STAINLESS)
1BLW10865734 Whirlpool Refrigerator DOR-FIP
1ALW10721546 Whirlpool Refrigerator DOR-FIP
1LW10721544 Whirlpool Refrigerator DOR-FIP
2CDOOR, RIGHT (INCLUDES #8) (STAINLESS)
2BLW10865738 Whirlpool Refrigerator DOR FIP
2ALW10721541 Whirlpool Refrigerator Door FIP
2LW10721540 Whirlpool Refrigerator Door Assembly
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8AW10460610 Whirlpool Refrigerator FIP Gasket
8W10460612 Whirlpool Refrigerator Door Gasket
8BGASKET-FIP
9CW11123099 Whirlpool Refrigerator Exterior Door Handle
9W11127179 Whirlpool Refrigerator Handle
9AW11123097 Whirlpool Refrigerator Handle
9BW11125624 Whirlpool Door Handle
10W11745278 Whirlpool Bracket
11WP939101 Whirlpool Refrigerator Plate
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13WPW10624451 Whirlpool Refrigerator Mullion Rail
13AW11692845 Whirlpool Mullen Rail
13BWPW10624450 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10170540 Whirlpool Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17W11106787 Whirlpool Refrigerator Cantilever Bin
18WPW10317224 Whirlpool Refrigerator Container
