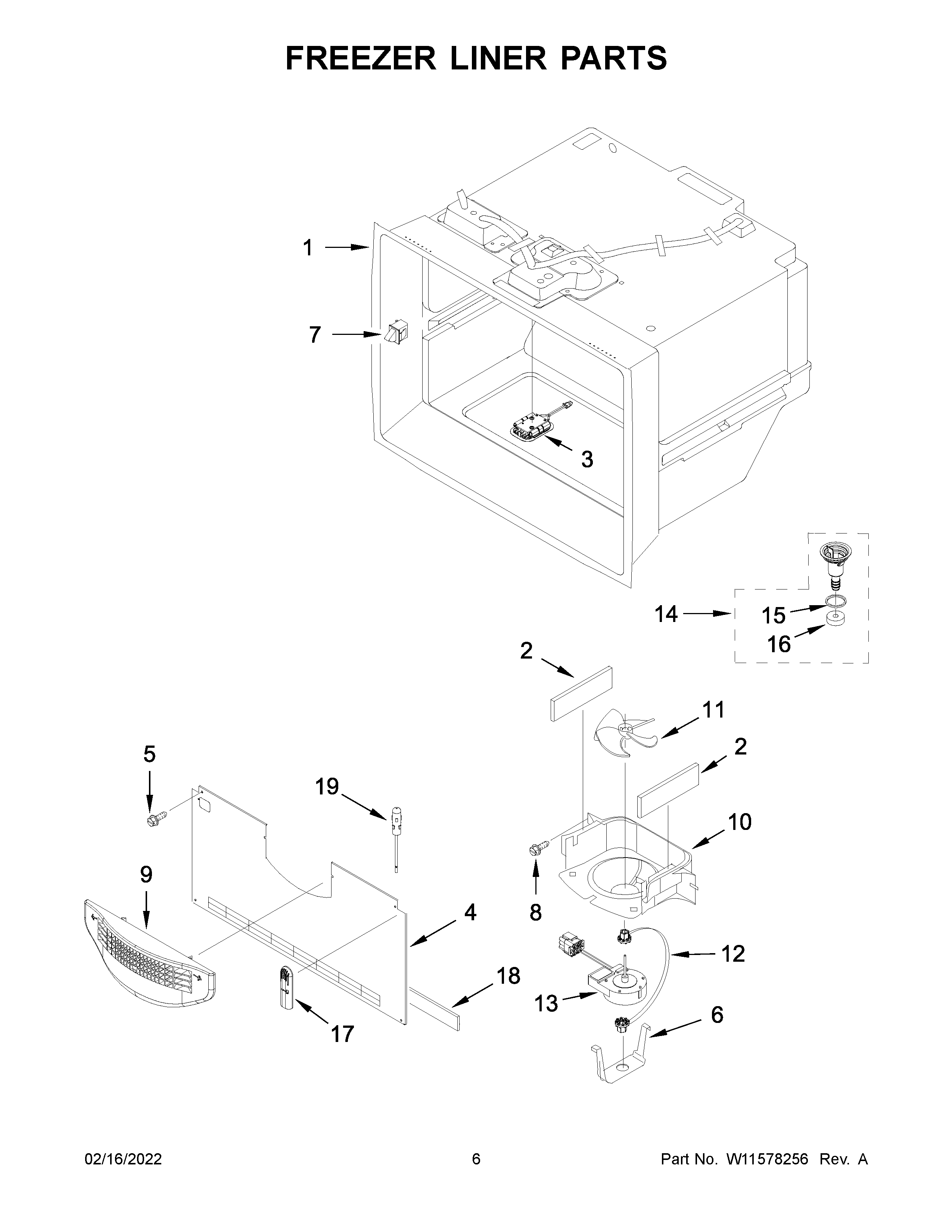

WRF757SDHZ03 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
3W11483116 Whirlpool Refrigerator Module
4W11408170 Whirlpool Evaporator Cover
567006425 Whirlpool Refrigerator Screw
6W11712696 Whirlpool Clip
7W11123941 Whirlpool Refrigerator Switch
8WP98165 Whirlpool Screw
9W10871842 Whirlpool Air Grille
10WPW10363507 Whirlpool Refrigerator Shroud
11WP67006337 Whirlpool Refrigerator Fan Blade
12W11676465 Whirlpool Grommet
13W11578030 Whirlpool Refrigerator Evaporator Motor
14W10503218 Whirlpool Refrigerator Funnel
15WPM0500703 Whirlpool Refrigerator O-Ring Seal
16WPB8381501 Whirlpool Refrigerator Door Gasket
17W11661208 Whirlpool Cover Assembly
18W10668165 Whirlpool Refrigerator Gasket
19THERMISTOR
