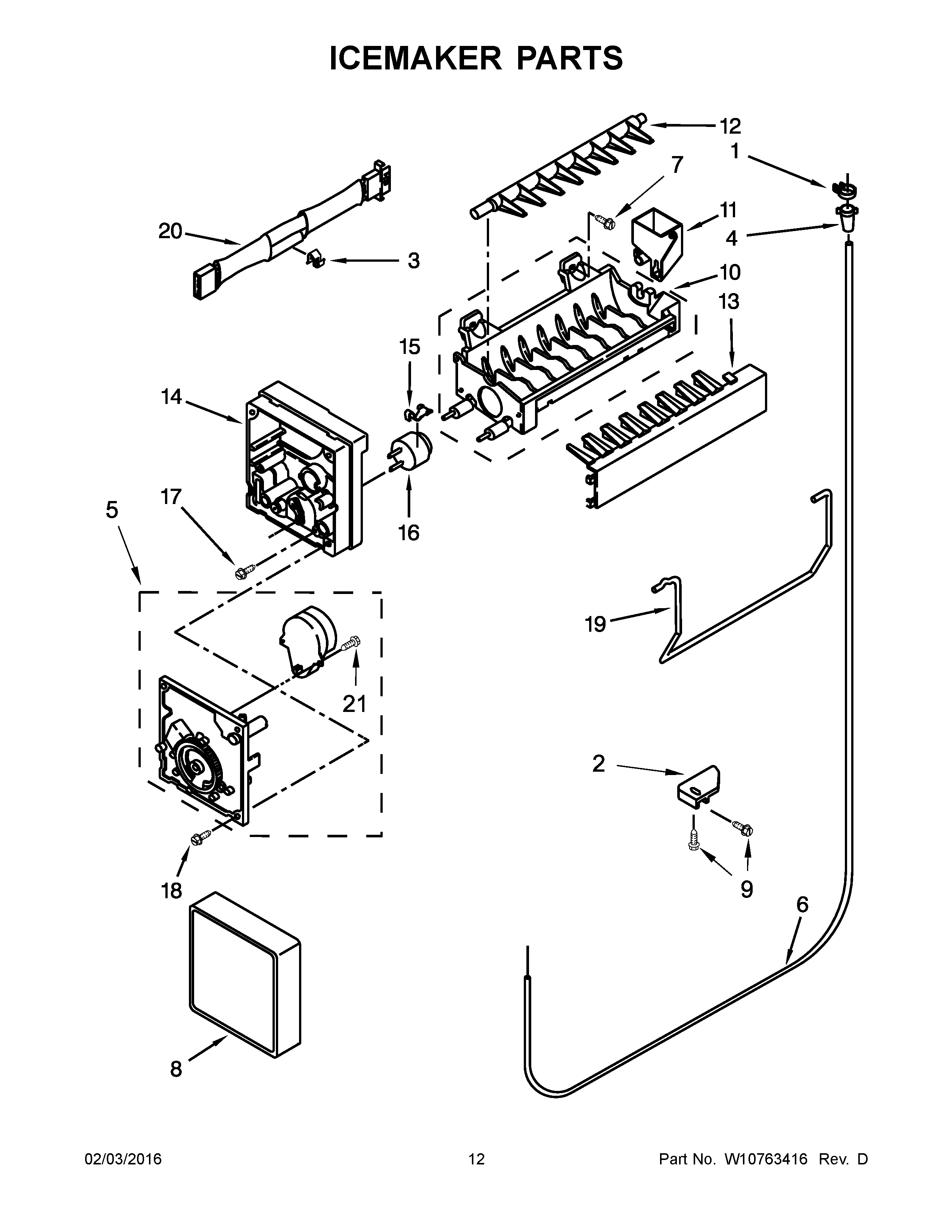

WRT318FMDW00 07 – ICEMAKER PARTS

Products

PositionProduct
1W10861184 Whirlpool Refrigerator Clamp
2W11500948 Whirlpool Refrigerator Bracket
3WP628379 Whirlpool Refrigerator Clip
44387491 Whirlpool Refrigerator Insert
58201515 Whirlpool Refrigerator Motor and Gear Module Kit
6W10823511 Whirlpool Refrigerator Water Tube
7WP488163 Whirlpool Refrigerator Screw
8WPW10289690 Whirlpool Ice Maker Cover
9WP489478 Whirlpool Refrigerator Screw
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W11676540 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13W10788834 Whirlpool Strip Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
17W10001280 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19W10646481 Whirlpool Refrigerator Arm Shut
20W11643622 Whirlpool Wire Harness
21489136 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
