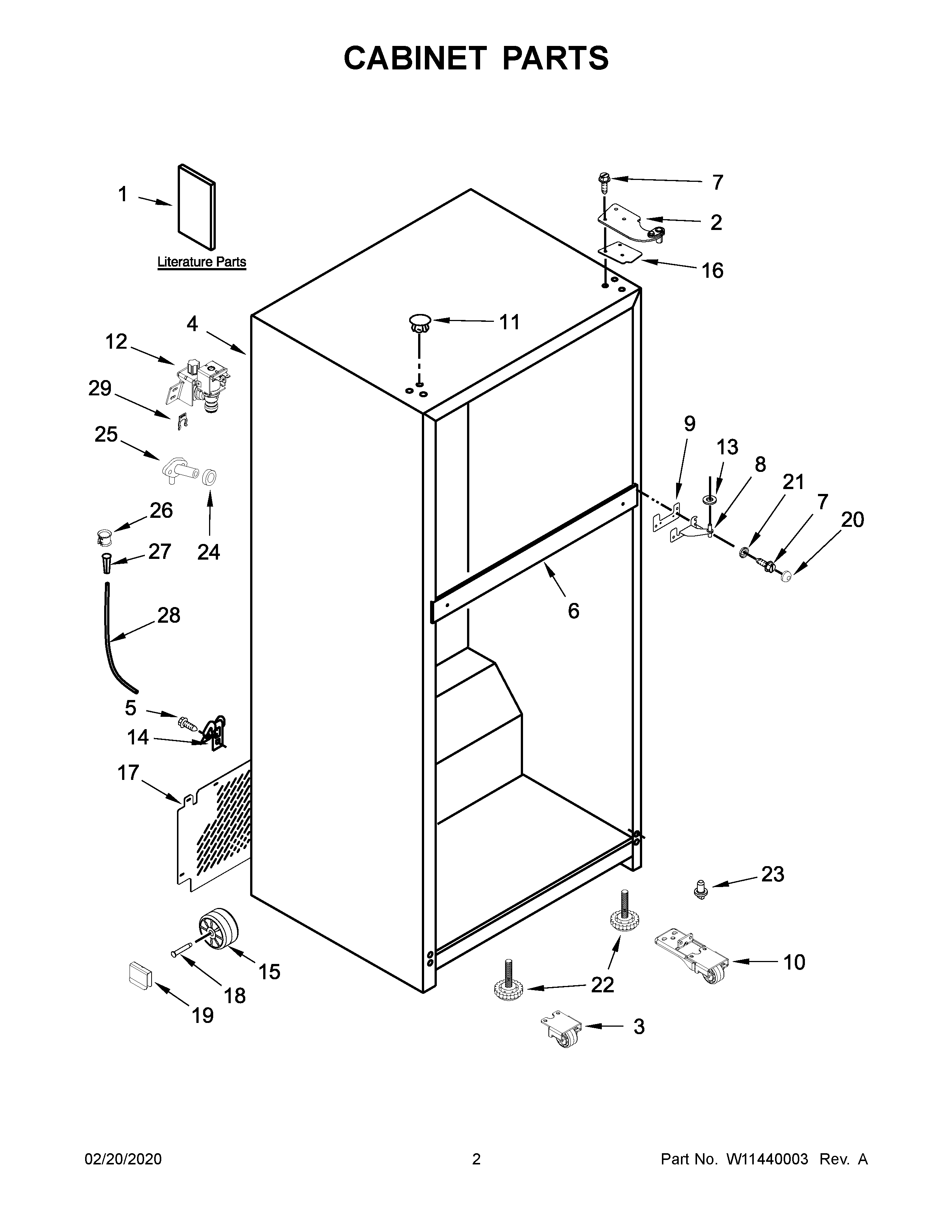

WRT519SZDB05 02 – CABINET PARTS

WRT519SZDB05 02 – CABINET PARTS

Written by

in

WRT519SZDB05 02 – CABINET PARTS

Products

PositionProduct
1AUSE & CARE GUIDE
1BENERGY GUIDE
1TECH SHEET
2WPW10300065 Whirlpool Refrigerator Door Hinge
3W11256723 Whirlpool Refrigerator CAB Roller
5WP489442 Whirlpool Refrigerator Screw
6WP489497 Whirlpool Screw
7CABINET (NOT A SERVICEABLE PART)
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10W11096015 Whirlpool Refrigerator Cab Roller
11WPW10520304 Whirlpool Refrigerator Button Plug
11CWPW10520307 Whirlpool Refrigerator Replacement Plug Button
11AWPW10520305 Whirlpool Refrigerator Button Plug
11BWPW10520306 Whirlpool Refrigerator Button Plug
12WPW10279909 Whirlpool Refrigerator Inlet Valve
13WP489467 Whirlpool Hinge Shim
14549193 Whirlpool Refrigerator Power Clamp
15WPW10475495 Whirlpool Roller Assembly
16W10883637 Whirlpool Refrigerator Hinge Shim
17W11476772 Whirlpool Refrigerator Cover Assembly
18W11594405 Whirlpool Axle
19WP2174706 Whirlpool Refrigerator Pin Hitch
20BW10679138 Whirlpool Screw Cap
20CW10849198 Whirlpool Refrigerator Cap Screw
20W10846529 Whirlpool Refrigerator Screw Cap
20AW10853677 Whirlpool Refrigerator Screw Cap
21W10847959 Whirlpool Refrigerator Washer
22W10854419 Whirlpool Refrigerator Leveling Leg
23W11026307 Whirlpool Refrigerator Hinge Pin
24WP1106508 Whirlpool Refrigerator Gasket
25W11292468 Whirlpool Refrigerator Fitting
26W10861184 Whirlpool Refrigerator Clamp
274387491 Whirlpool Refrigerator Insert
28W10823511 Whirlpool Refrigerator Water Tube
29W11676611 Whirlpool Ring
