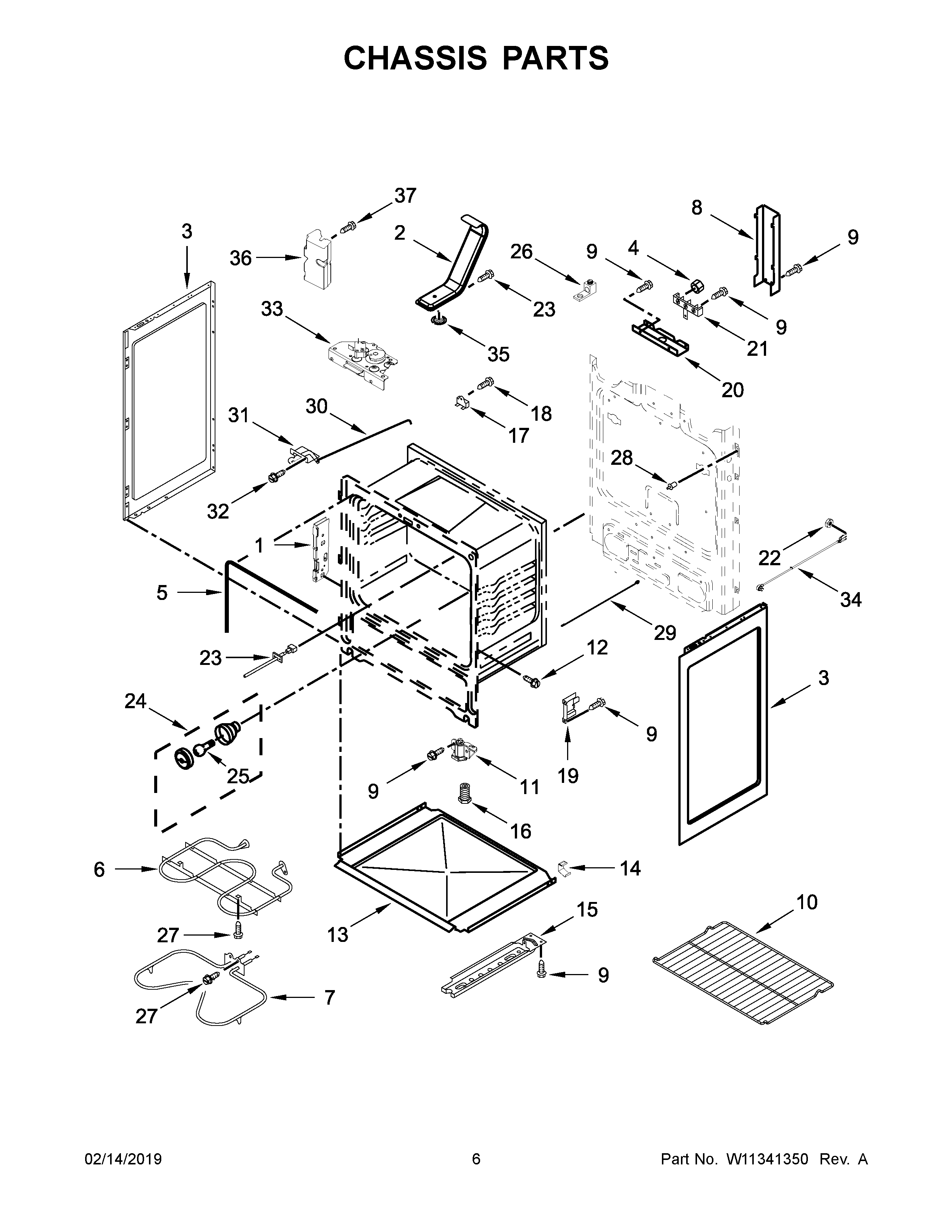

YAER6603SFW2 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, FLUE
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	RECEIVER, HINGE
2	TUBE, VENT
3	PANEL, SIDE (WHITE)
4	NUT
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	COVER, TERMINAL BLOCK
9	SCREW
10	RACK, OVEN
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	WP7103P027-60 Whirlpool Nut
23	SENSOR, OVEN
24	MAY W11175594
25	BULB, HALOGEN 40 WATTS
26	KIT, BARE WIRE ADAPTER BLOCK
27	SCREW
28	SWITCH, DOOR
29	ROD, DOOR SWITCH
30	ROD, LATCH
31	ASSEMBLY, DOOR LATCH (FRONT)
32	SCREW
33	ASSEMBLY, LATCH (REAR)
34	CORD, POWER
35	SCREEN, VENT
36	COUNTERWEIGHT
37	SCREW
