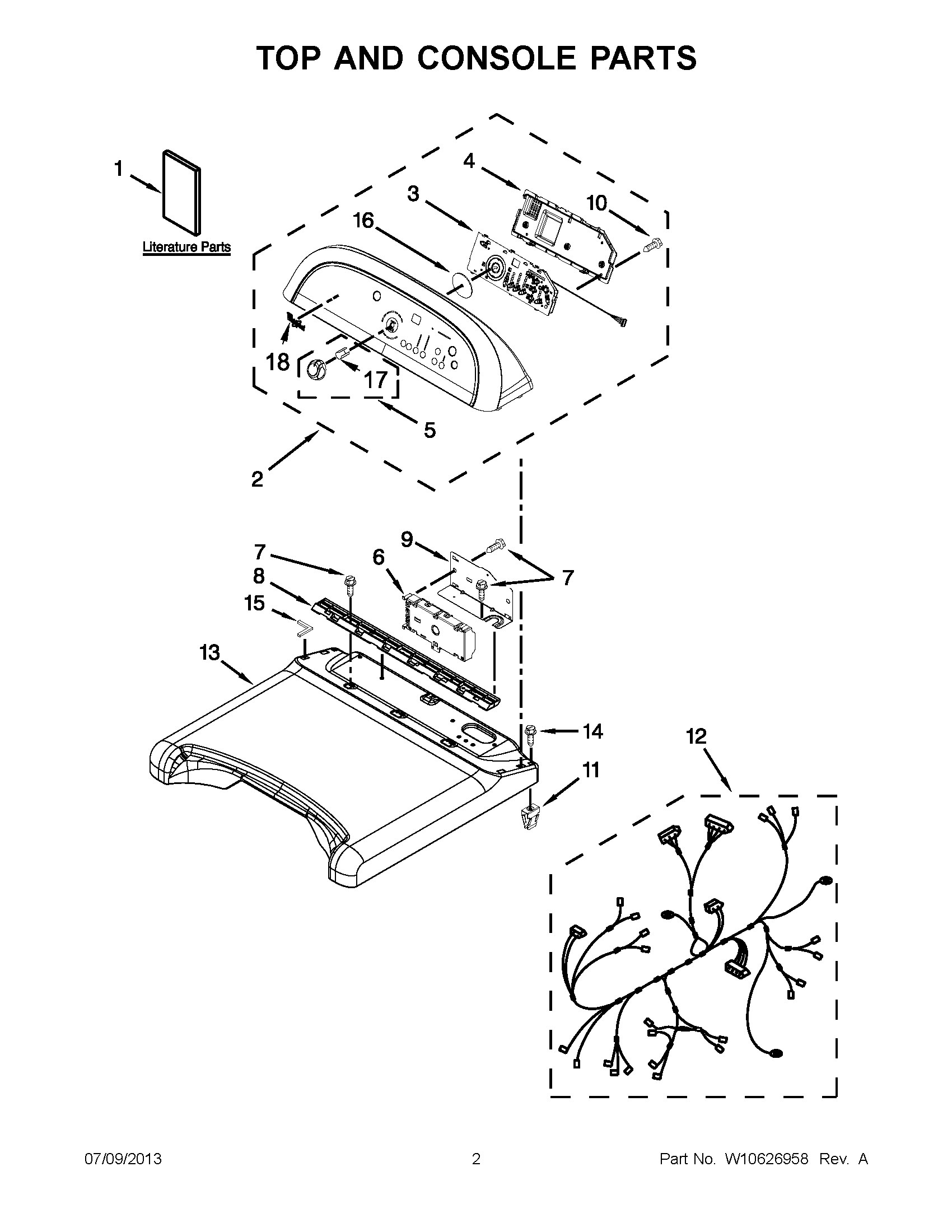

YWED8000BW0 01 – TOP AND CONSOLE PARTS

YWED8000BW0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED8000BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
2ASSEMBLY, CONSOLE (WHITE)
3WPW10566876-includeCORE Whirlpool WPW10566876 Refrigerator Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10576632 Whirlpool Dishwasher Knob
6WPW10532428-includeCORE Whirlpool WPW10532428 Washer Electronic Control Board + Core
7WP33001882 Whirlpool Screw
8Bracket, Console
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10112673 Whirlpool Clip
12HARNESS, MAIN
13TOP
14W10131402 Whirlpool Screw
15W10185554 Whirlpool Seal Assembly
16SEAL, USER INTERFACE
17SPRING, CLIP KNOB
18WPW10393264 Whirlpool Refrigerator Nameplate
