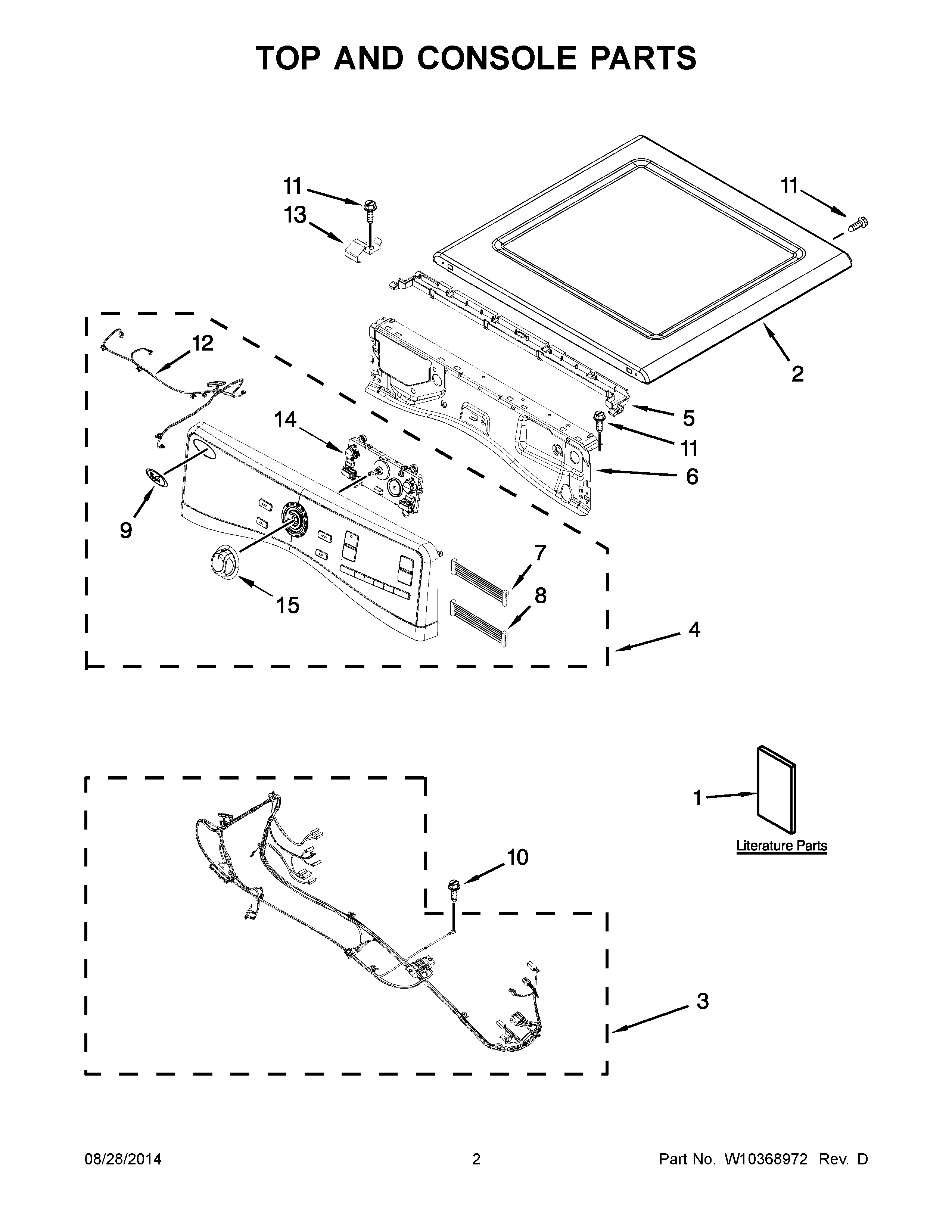

YWED97HEXR0 02 – TOP AND CONSOLE PARTS

YWED97HEXR0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED97HEXR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1USE & CARE GUIDE
1BINSTALLATION INSTRUCTIONS
2ATOP (RED)
2WPW10208383 Whirlpool Top Panel
2BWPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN
4BPANEL, CONSOLE (SILVER)
4PANEL, CONSOLE (WHITE)
4AWPW10352485 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10267832 Whirlpool Wire
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
