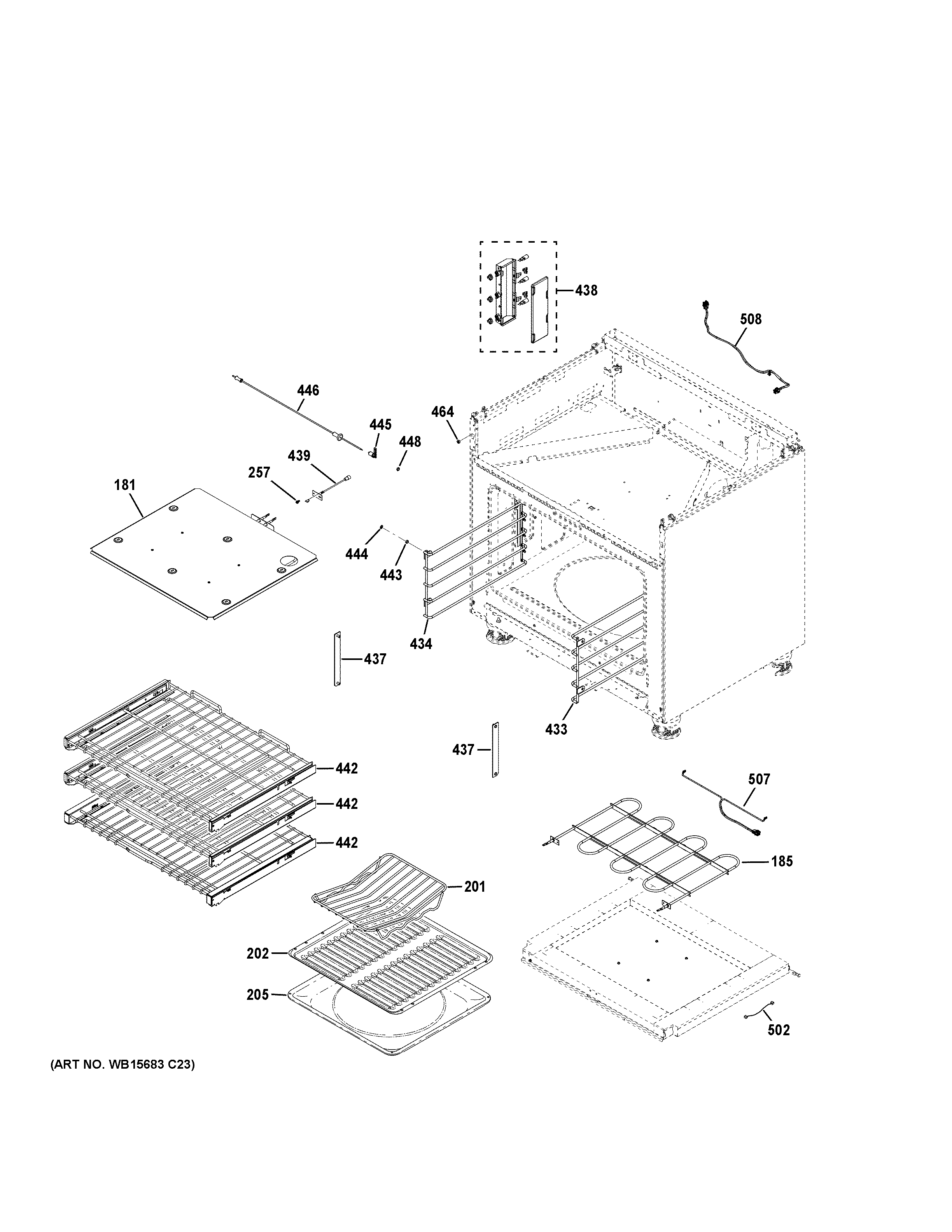

ZDP364NDT1SS OVEN CAVITY PARTS

ZDP364NDT1SS OVEN CAVITY PARTS

Written by

in

ZDP364NDT1SS OVEN CAVITY PARTS

Products

PositionProduct
181ELEMENT AND REFLECTOR BROIL MAIN OVEN
185WB44X39449 GE Oven Main Hidden Bake Element
201WB48K10020 GE Oven Rack – Convection Roast
202RACK BROILER PAN
205PAN BROILER
257SCR 8-18 AB IHW 3/8 SN
433WB02K10394 GE Right Hand Oven Rack Guide
434WB02K10395 GE Oven Left Hand Guide Rack
437BRACE CAVITY ASM
438WB25X39610 GE Halogen Lamp Assembly
439WB21X22134 GE Oven Sensor Assembly
442WB48X39557 GE Oven Slide Rack
443SPRING WASHER
444WB01T10107 GE Oven Bolt Retainer
445WB20K10032 GE Oven Probe Receptacle
446WB18X39925 GE Thermistor Probe
448NUT RECEPTACL HEX 1/4-32
464WB02X28738 GE Oven Front Frame Bumper
502WB18K10085 GE Harness
507HARNESS EXT HIDDEN BAKE
508HARNESS HIDDEN BAKE
